Products > Rugged Tablet PC > Rugged Tablet Windows PC  >  10.1 inch rugged waterproof tablet PC I17J

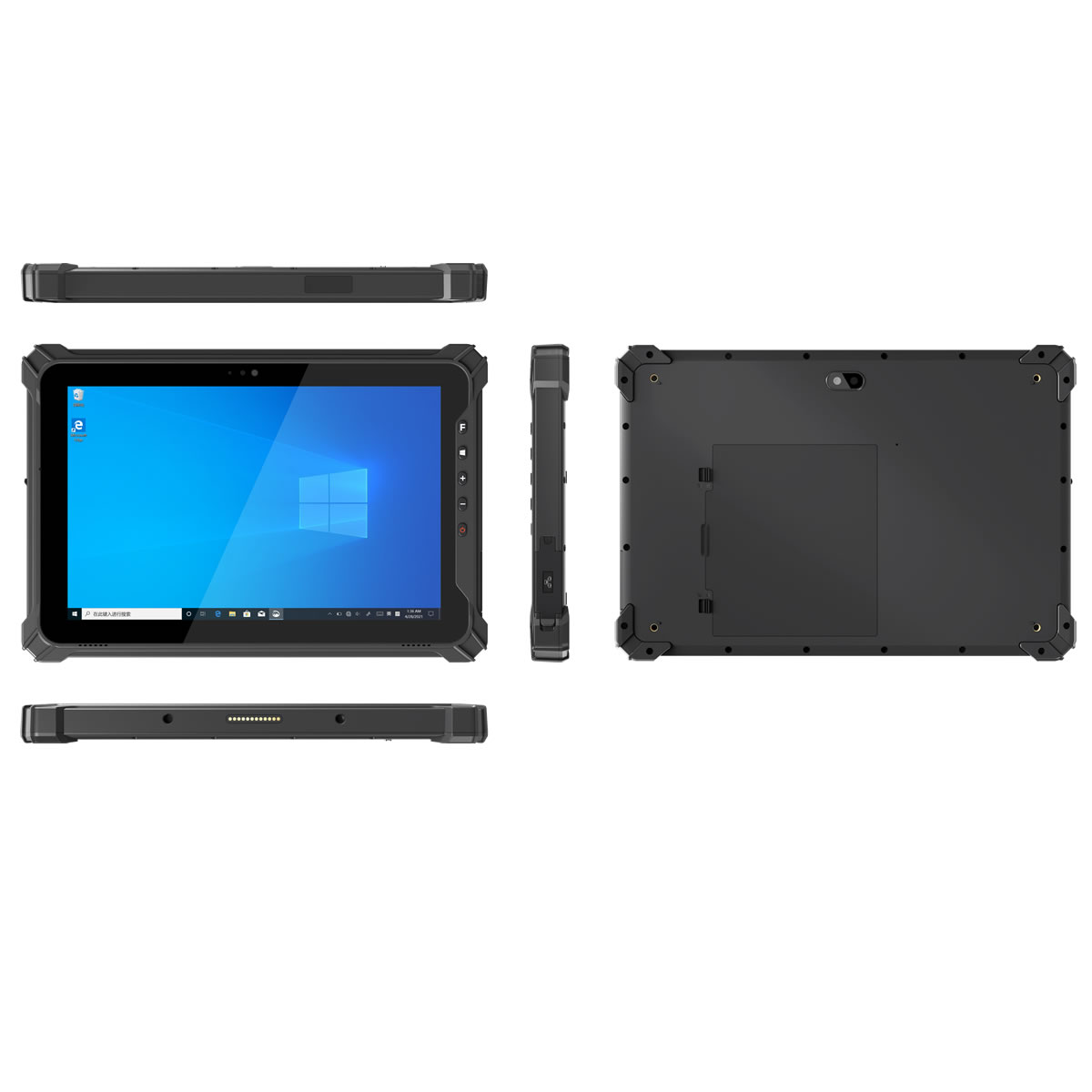

10.1 inch rugged waterproof tablet PC I17J
FEATURES
- Support for Windows 10 system
- Intel Jasper Lake processor Celeron N5100
- 10.1 inch IPS screen, 1920x1200 TFT, 10-point capacitive touch
- Front 5.0MP + Rear 8.0MP, autofocus with flashlight
- Symmetric speakers. More immersive, more clear.
- User-friendly buttons designed for efficient action
- Extension interface (3 choose 1, RJ45, DB9, USB Type-A)
- Efficient file transfer rely on advanced USB 3.0 I/O port
- Optional high performance 2D imager designed to data capture
- Enhanced rugged corners withstand shock and impact
- IP65 Waterproof and Dustproof, MIL-STD-810G certified
- Removable 5000mAh battery & New battery-free working mode
OVERVIEW
ITDs Rugged tablet PCs with Windows allows abuses of everyday on-the-job use that are designed to withstand more challenges than their consumer-grade counterparts, with a much longer lifecycle. A variety of inputs and outputs designed to connect to equipment or transfer data and multiple wireless connectivity options bring the adaptability needed to match an ever-changing digital environment.  And with many available ITD rugged tablet pc attachments and modules like vehicle docks, docking charger, hand-strap hot-swappable batteries, UHF, RFID, NFC, fingerprint, QR reader, barcode scanner and more, you'll be amazed at the increase in productivity seen in your organization. Many of our tablets come with mounting solutions, including vehicle mounts to be used in heavy-duty machines or vehicles.


10.1 inch Rugged Waterproof Tablet PC I17J

Model Name ITD101PPCT5-I17J
IP Rating IP65

Basic Parameter

Dimensions 274.9188.723.1mm
Weight Device Unit 1140g
Device Color Black
LCD Panel 10.1 inch IPS 16:10, 19201200
Touch Panel 10 point G+G Capacitive Touch Screen
Camera Front 5.0MP Rear 8.0MP
I/O USB 3.0 Type-A1, USB Type-C1,
SIM Card1, TF Card1(Three in one card holder),
HDMI 1.4a1, 12pins Pogo Pin1,
DB9 RS2321, RJ451
3.5mm standard earphone jack1,
Extension
interface
(3 choose 1)
RJ45 (10/100M)1,
DB9 (RS232)1,
USB 2.0 Type-A1
Power AC100-240V, 50Hz/60Hz, Output DC 19V/3.42A (Support power supply without battery adapter)

Performance Parameters

CPU Intel Core Processor N5100
RAM 4G/8GB
Storage 64GB/128GB
OS Windows 10

Battery

Capacity 7.6V/5000mAh
Type Li-polymer removable battery
Endurance 9hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )

Communication

WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.2
GNSS Built-in GPS
4G (Optional) LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B40
WCDMA: B1/B5/B8
GSM: B3/B8

Data Collection

NFC Optional, 13.56MHz, ISO/IEC 14443A/B,
ISO/IEC 15693, ISO/IEC 18092 Mifare Protocol
2D Optional, EM80

Reliability

Operating Temperature Range -20 C ~ 60 C
Storage Temperature Range -30 C ~ 70 C
Humidity 95% non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
Next10.1 inch Rugged Windows Tablet PC I12U
Previous10.1 inch rugged industrial tablet PC I10J
