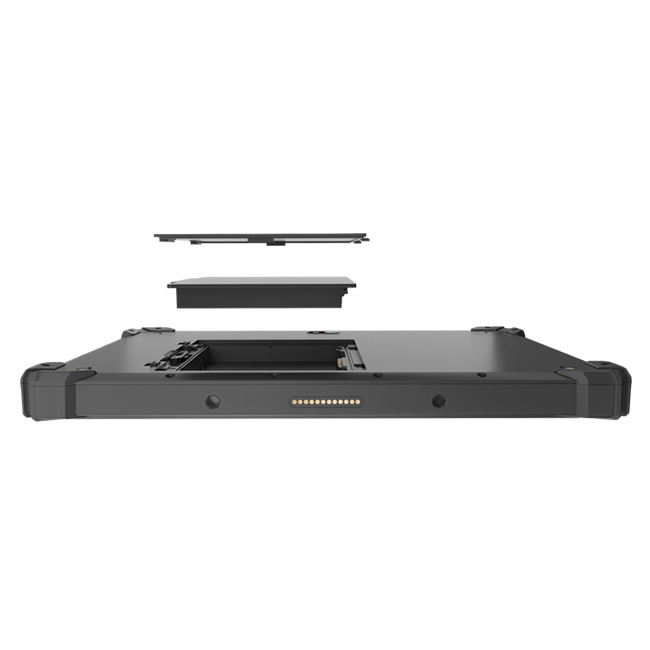

10.1 inch ruggedized tablet computer I15H
FEATURES
- Support for Windows 10 system
- Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
- 10000mAh battery, 6-8 hours of machine endurance
- IP65 high protection level, in accordance with MIL-STD-810G
- Support GPS, Beidou, GLONASS, more accurate positioning
- 800x1280 IPS, 700nit high brightness screen, more suitable for outdoor harsh environment
- Support 1D/2D, RFID, NFC, ID card and other functional modules for free selection
OVERVIEW
ITDs Rugged tablet PCs with Windows allows abuses of everyday on-the-job use that are designed to withstand more challenges than their consumer-grade counterparts, with a much longer lifecycle. A variety of inputs and outputs designed to connect to equipment or transfer data and multiple wireless connectivity options bring the adaptability needed to match an ever-changing digital environment.  And with many available ITD rugged tablet pc attachments and modules like vehicle docks, docking charger, hand-strap hot-swappable batteries, UHF, RFID, NFC, fingerprint, QR reader, barcode scanner and more, you'll be amazed at the increase in productivity seen in your organization. Many of our tablets come with mounting solutions, including vehicle mounts to be used in heavy-duty machines or vehicles.


10.1 inch Ruggedized Tablet Computer I15H

Model Name ITD101PPCT5-I15H
IP Rating IP65

Basic Parameter

Dimensions 28018025.8mm
Weight Device Unit 1068g
Device Color Black
LCD Panel 10.1 inch IPS 16:10, 1280800, 700nits
Touch Panel 10 point G+G Capacitive Touch Screen Corning Gorilla Glass
Camera Front 2.0MP Rear 5.0MP
I/O USB Type-C1, USB 2.0 Type-A1,
SIM Card1, TF Card1,
HDMI C1, 12pins Pogo Pin1,
3.5mm standard earphone jack1,
5.5mm DC jack1
Power AC100-240V, 50Hz/60Hz, Output DC 5V/3A

Performance Parameters

CPU Intel Core Atom x5 Z8350
RAM 4G
Storage 32GB/64GB/128GB
OS Windows 10

Battery

Capacity 3.7V/10000mAh
Type Li-polymer removable battery
Endurance 7hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )

Communication

WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.2
GNSS Built-in GPS
4G (Optional) LTE FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8, GSM: B3/B8

Data Collection

NFC Optional, 13.56MHz, ISO/IEC 14443A/B,
ISO/IEC 15693, ISO/IEC 18092
RFID Optional, TTL Uart port
1D Optional, Honeywell N4313
2D Optional, EM80
ID Optional reading the fingerprint information in the 1st and 2nd ID card
Fingerprint Recognition Optional, FPC1020(sensor, capacity press type)
Fingerprint Authentication Optional, Fingerprint collection module for Resident identity, Card:standard UART/USB port

Reliability


Operating Temperature Range -20 C ~ 60 C
Storage Temperature Range -30 C ~ 70 C
Humidity 95% non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
