10.4 inch Open Frame High Bright Sunlight Readable LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and side brackets)
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial open frame sunlight readable LCD displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITD open frame LCD monitors are packaged in a steel enclosure and durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder for indoor, semi-outdoor and outdoor applications.




Open Frame High Brightness LCD
Monitor

Model Name

ITD10OFN1HB02

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch/cm)

10.4

Display Active Screen Size (mm)

211.2(H) 158.4(V)

Aspect Ratio

4:3

Physical Resolution

800600(1024768 optional)

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

500:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

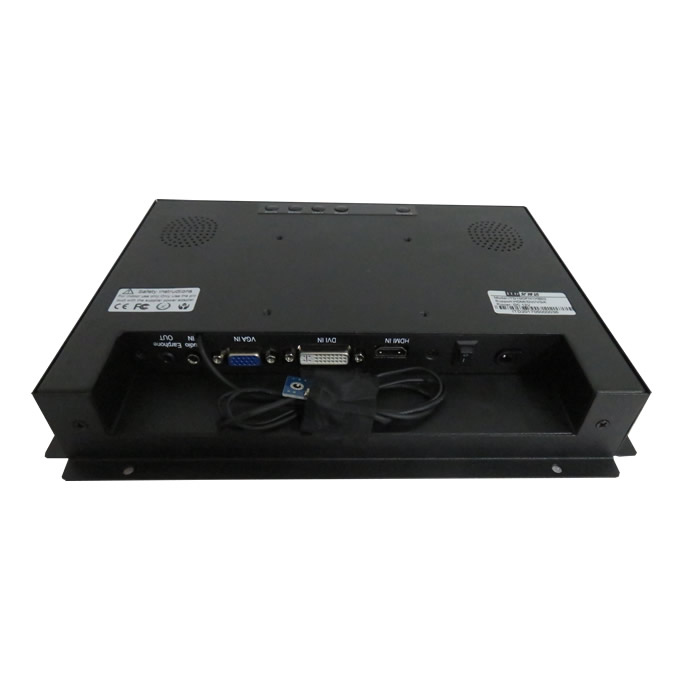

Input / Output

Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

18W


Order Information

10.41000nits Open Frame LCD Monitor with Resistive Touch

ITD10OFT1HB02

10.41000nits Open Frame LCD Monitor with IR Touch

ITD10OFT2HB02

10.41000nits Open Frame LCD Monitor with SAW Touch

ITD10OFT3HB02

10.41000nits Open Frame LCD Monitor with PCAP Touch

ITD10OFT5HB02

10.41000nits Open Frame LCD Monitor with Tempered Glass

ITD10OFG1HB02

10.41500nits Open Frame LCD Monitor with Resistive Touch

ITD10OFT1HB01

10.41500nits Open Frame LCD Monitor with IR Touch

ITD10OFT2HB01

10.41500nits Open Frame LCD Monitor with SAW Touch

ITD10OFT3HB01

10.41500nits Open Frame LCD Monitor with PCAP Touch

ITD10OFT5HB01

10.41500nits Open Frame LCD Monitor with Tempered Glass

ITD10OFG1HB01
