OVERVIEW
ITD industrial PCAP touch panel mounted PCs provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminumenclosuresand highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments.The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean.TheIndustrial PCAP touchpanel PCs come with industrial LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilitiesare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.

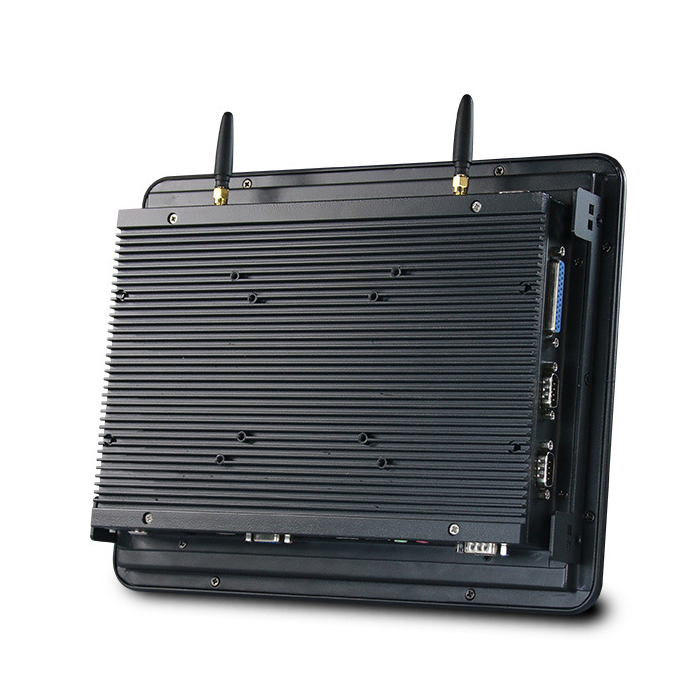

PCAP Touch Panel Mounted PC
Model Name	ITD10PPCT5Q**
IP Rating	IP65 Front Panel
PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based CPU: Quad-Core Cortex-A17 1.8GHz CPU:Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7 (4th~12th Generation optional) Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412) 2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.) HDD/SSD: Default to 16G, Max. 128G Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD 1×HDMI Output; COM optional 1×VGA, 1×HDMI 1×VGA, 1×HDMI 2×USB, Max. 4×USB, 1×USB OTG (optional) 2×USB 2.0, 2×USB3.0, Max. 6 2×USB 2.0, 2×USB3.0, Max. 6 1×TF Card Slot(Supports 8~128G) 2×COM, Max. 6 2×COM, Max. 6 1×LAN 1×LAN, Dual LAN optional 1×LAN, Dual LAN optional 1×Audio Out 1×Realtek ALC662 , 1×Line-Out/MIC In 1×Realtek ALC662 , 1×Line-Out/MIC In PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux Windows 11(available for J4125/J6412) Windows 7/10, Linux Windows 11(available for 7th gen. or above)
LCD Panel
Screen Diagonal (Inch)	10.4”
Display Active Screen Size (cm)	211.2(H)×158.4(V)
Aspect Ratio	4:3
Physical Resolution	800×600 or 1024×768
Maximum Resolution Supported	1920×1080
Colors	16.2M
Brightness (cd/m2)	300nits
Contrast Ratio	500:1
View Angels	80/80/70/70
Backlight/Backlight Lifetime	LED Backlight with 50000Hours’Lifetime
Touch Panel
Touch Options	Projected Capacitive Touch Panel
Touch Drivers	Windows 7/8/10, Linux, Android, Mac
Operation
Operating Temperature Range	-10~60°C (-20~70°COptional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V
Power Consumption	22W
Order Information
10.4”PCAP Touch Panel Mounted PC with J1900	ITD10PPCT5QJ1
10.4”PCAP Touch Panel Mounted PC with i3	ITD10PPCT5QI3
10.4”PCAP Touch Panel Mounted PC with i5	ITD10PPCT5QI5
10.4”PCAP Touch Panel Mounted PC with i7	ITD10PPCT5QI5
