OVERVIEW
ITD industrial panel mountpanel PCs provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments.The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mountpanel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilitiesare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.

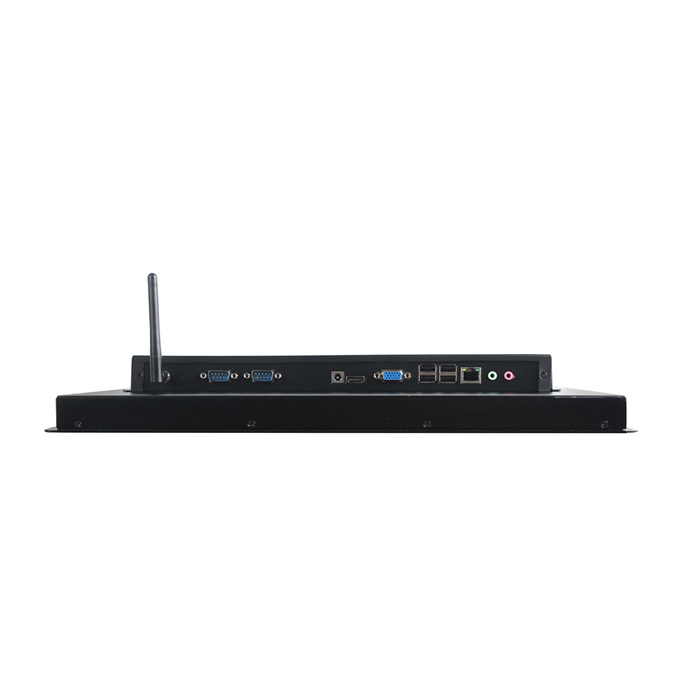

Flat Bezel IndustrialPanel PC
Model Name		ITD11PPCG1X**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3399 optional) X86 Based X86 Based CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/6412 CPU: Intel Core i3/i5/i7 4th~11th Generation Chipset: Rockchip Chipset: Intel Bay Trail SOC Chipset: Intel SoC Graphic: Intel HD Graphics (By CPU) Chipset: Intel HD Graphics (By CPU) Memory: 2G Max. 8GB Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1 Memory: 4GB, Max. 32GB; DDR4 SODIMM x2 HDD/SSD: 8G Max. 64GB Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD 1×HDMI Output 1×VGA, 1×HDMI 1×VGA, 1×HDMI 1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0 1×TF Slot 2×COM(RS232/422/485) 1×COM(RS232/422/485) 1×LAN 1×LAN (Dual LAN optional) 1×LAN (Dual LAN optional) 1×Audio Output 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In 1×COM Expansion: USB, COM, Mini-PCIe, etc. Expansion: USB, COM, Mini-PCIe, etc. OS Support: Android 7.1/8/9/10/11 OS Support: Windows 7/10/11, Linux OS Support: Windows 7/10/11, Linux
LCD Panel
Screen Diagonal (Inch)		11.6”
Display Active Screen Size (cm)		256.32(H)×144.18(V)
Aspect Ratio		16:9
Physical Resolution		1920×1080
Maximum Resolution Supported		1920×1080
Colors		262K
Brightness (cd/m2)		350
Contrast Ratio		800:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours’Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°Coptional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		29.5W
Order Information
11.6”Panel Mount Panel PC with Resistive Touch, J1900		ITD11PPCT1XJ31
11.6”Panel Mount Panel PC with PCAP Touch, J1900		ITD11PPCT5XJ31
11.6”Panel Mount Panel PC with Tempered Glass, J1900		ITD11PPCG1XJ31
11.6”Panel Mount Panel PC with Resistive Touch, i5		ITD11PPCT1X3I5
11.6”Panel Mount Panel PC with PCAP Touch, i5		ITD11PPCT5X3I5
11.6”Panel Mount Panel PC with Tempered Glass, i5		ITD11PPCG1X3I5
