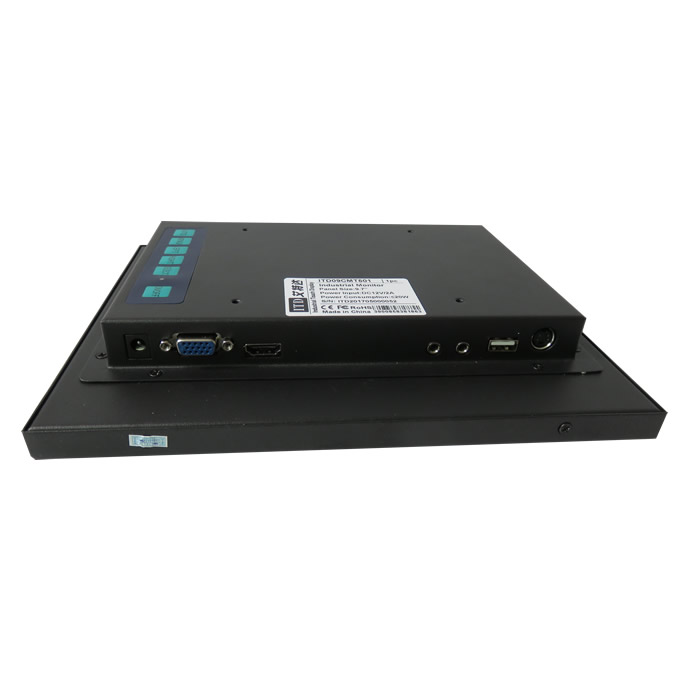

Chassis LCD Monitor

Model Name

ITD12CMN101

IP Rating

N/A

LCD Panel

Screen Diagonal (Inch)

12.1”

Display Active Screen Size (mm)

246.0(H)×184.5(V)

Aspect Ratio

4:3

Physical Resolution

800×600 or 1024×768

Maximum Resolution Supported

1920×1080

Colors

262K

Brightness (cd/m2)

300

Contrast Ratio

700:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000Hours’Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

1 × USB

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

21.9W

Order Information

12.1”Chassis LCD Monitor with Resistive Touch

ITD12CMT101

12.1”Chassis LCD Monitor with IR Touch

ITD12CMT201

12.1”Chassis LCD Monitor with SAW Touch

ITD12CMT301

12.1”Chassis LCD Monitor with PCAP Touch

ITD12CMT501

12.1”Chassis LCD Monitor with Tempered Glass

ITD12CMG101
