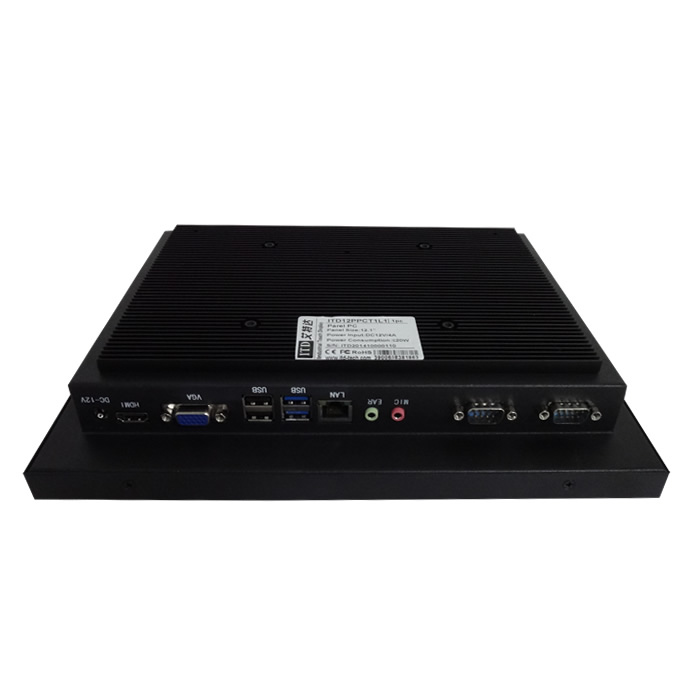

12.1 inch Chassis Panel PC
BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-All steel construction designedfor harsh& industrialenvironments
-Easy-to-install VESA(75/100mm) wall mounting
-Optional touchscreens like resistive, IR, SAW, PCAP
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassispanel PCsis a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments.ITD chassis panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities whichare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.




Chassis Panel PC

Model Name ITD12PPCG1L**
IP Rating IP65 Front Panel Optional

PC Systems Options

ARM Android Based RK3288(RK3399 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/6412 CPU: Intel Core i3/i5/i7 4th~11th Generation
Chipset: Rockchip Chipset: Intel Bay Trail SOC Chipset: Intel SoC
Graphic: Intel HD Graphics (By CPU) Chipset: Intel HD Graphics (By CPU)
Memory: 2G Max. 8GB Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1 Memory: 4GB, Max. 32GB; DDR4 SODIMM x2
HDD/SSD: 8G Max. 64GB Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD
1¡ÁHDMI Output 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
1¡ÁUSB 2.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡ÁTF Slot 2¡ÁCOM(RS232/422/485) 1¡ÁCOM(RS232/422/485)
1¡ÁLAN 1¡ÁLAN (Dual LAN optional) 1¡ÁLAN (Dual LAN optional)
1¡ÁAudio Output 1¡ÁAudio Out, 1¡ÁMIC In 1¡ÁAudio Out, 1¡ÁMIC In
1¡ÁCOM Expansion: USB, COM, Mini-PCIe, etc. Expansion: USB, COM, Mini-PCIe, etc.
OS Support: Android 7.1/8/9/10/11 OS Support: Windows 7/10/11, Linux OS Support: Windows 7/10/11, Linux

LCD Panel

Screen Diagonal (Inch) 12.1¡±
Display Active Screen Size (cm) 246.0(H)¡Á184.5(V)
Aspect Ratio 4:3
Physical Resolution 800¡Á600
Maximum Resolution Supported 1920¡Á1080
Colors 16.7M
Brightness (cd/m2) 300
Contrast Ratio 700:1
View Angels 80/80/70/70
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel

Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -10~60¡ãC (-20~70¡ãCOptional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 12V
Power Consumption 33.9W

Order Information

12.1¡±ChassisPanel PC with Resistive Touch, J1900 ITD12PPCT1LJ1
12.1¡±Chassis Panel PC with PCAP Touch, J1900 ITD12PPCT5LJ1
12.1¡±Chassis Panel PC with IR Touch, J1900 ITD12PPCT2LJ1
12.1¡±Chassis Panel PC with Tempered Glass, J1900 ITD12PPCG1LJ1
12.1¡±Chassis Panel PC with Resistive Touch, i5 ITD12PPCT1LI5
12.1¡±Chassis Panel PC with PCAP Touch, i5 ITD12PPCT5LI5
12.1¡±Chassis Panel PC with IR Touch, i5 ITD12PPCT2LJ1
12.1¡±Chassis Panel PC with Tempered Glass, i5 ITD12PPCG1LI5
