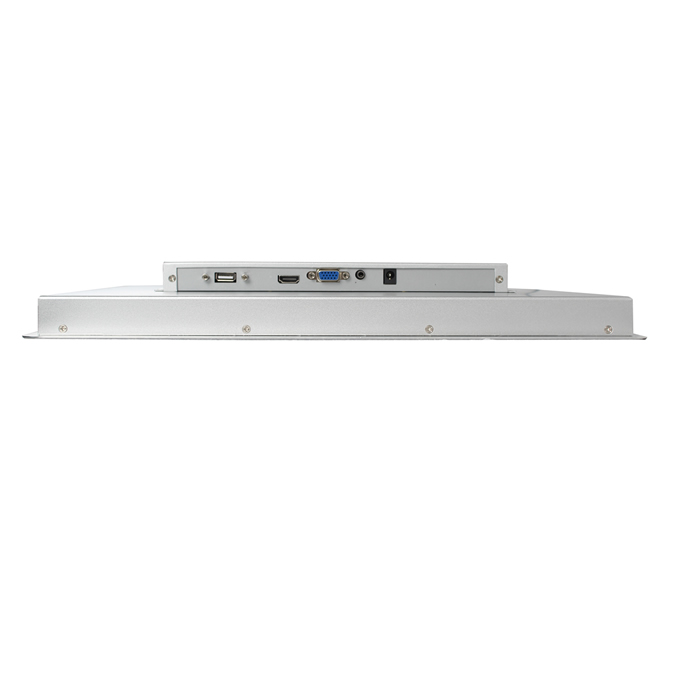

High Brightness Flat Bezel Panel Mount LCD Monitor

Model Name

ITD12PMG1HBX2

IP Rating

IP65 Front Panel

LCD Panel

Screen Diagonal (Inch/cm)

12.1”

Display Active Screen Size (cm)

246.0(H) ×184.5(V)mm

Aspect Ratio

4:3

Physical Resolution

800×600(1024×768 optional)

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

600:1

View Angels

80/80/70/60

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

Power Connector

1 × USB

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

22W

Order Information

12.1”1000nits Panel Mount LCD Monitor with Resistive Touch

ITD12PMT1HBX2

12.1”1000nits Panel Mount LCD Monitor with PCAP Touch

ITD12PMT5HBX2

12.1”1000nits Panel Mount LCD Monitor with Tempered Glass

ITD12PMG1HBX2

12.1”1500nits Panel Mount LCD Monitor with Resistive Touch

ITD12PMT1HBX1

12.1”1500nits Panel Mount LCD Monitor with PCAP Touch

ITD12PMT5HBX1

12.1”1500nits Panel Mount LCD Monitor with Tempered Glass

ITD12PMG1HBX1
