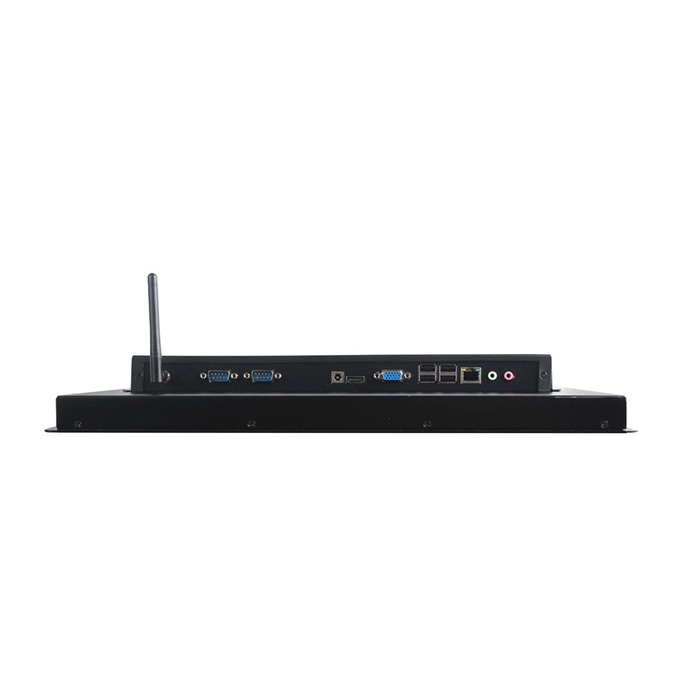

12.1 inch Flat Bezel Industrial Panel PC
BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean
-Optional touchscreens like resistive, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mountpanel PCs provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments.The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mountpanel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilitiesare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.




Flat Bezel IndustrialPanel PC

Model Name

ITD12PPCG1X**W

IP Rating

IP65 Front Panel


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel HD Graphics, Support 1080p

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

12.1¡±

Display Active Screen Size (cm)

261.12(H)¡Á163.2(V)

Aspect Ratio

16:10

Physical Resolution

1280¡Á800

Maximum Resolution Supported

1920¡Á1200

Colors

16.2M

Brightness (cd/m2)

400

Contrast Ratio

800:1

View Angels

80/80/65/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'LifetimeV


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

33.9W


Order Information



12.1¡±Panel Mount Panel PC with Resistive Touch, J1900

ITD12PPCT1XJ1W

12.1¡±Panel Mount Panel PC with PCAP Touch, J1900

ITD12PPCT5XJ1W

12.1¡±Panel Mount Panel PC with Tempered Glass, J1900

ITD12PPCG1XJ1W

12.1¡±Panel Mount Panel PC with Resistive Touch, i5

ITD12PPCT1XI5W

12.1¡±Panel Mount Panel PC with PCAP Touch, i5

ITD12PPCT5XI5W

12.1¡±Panel Mount Panel PC with Tempered Glass, i5

ITD12PPCG1XI5W
