Products > Industrial Touchscreen LCD > USB Powered Touch Monitor  >  12.1 inch USB Powered Touch Screen LCD Monitor

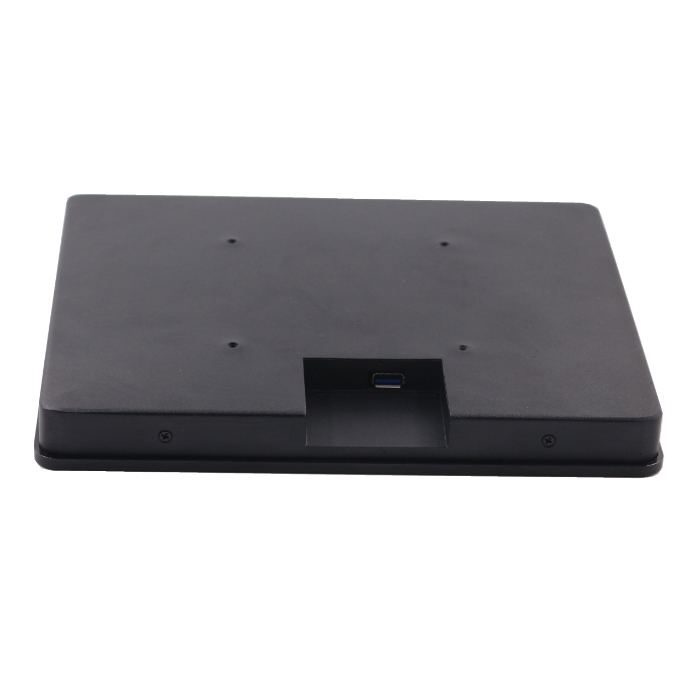

12.1 inch USB Powered Touch Screen LCD Monitor
BENEFITES
- Exceptional quality and highly engineered USB powered touch monitors
- Optional touchscreens like resistive, projected capacitive touch screen
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and chassis VESA-mount display
- Utilizes Displaylink for power, touch and video over single USB connection
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD chassis USB powered touch monitors come with one external USB cable only integrating power supply, video input and touch connection! One cable does it all! It is designed to help you streamline your tasks and create a more efficient and enjoyable end-user experience. Its capacitive and non-touch options have HDMI compatibility right out of the box, which is designed to be highly resilient and durable, lasting for years of consistently efficient performance to benefit industrial/commercial or business system-related needs. Its size arrange can be up to max. 15.6.



USB Powered Touch
Monitor

Model Name

ITD12CMT5HR0U



IP Rating

N/A


LCD Panel

Screen Diagonal (Inch)

12.1

Display Active Screen Size (mm)

245.76(H)184.32(V)

Aspect Ratio

4:3

Physical Resolution

1024768

Maximum Resolution Supported

19201080

Colors

262K/16.7M

Brightness (cd/m2)

300

Contrast Ratio

800:1

View Angels

80/80/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000HoursLifetime


Touch Panel

Touch Options

Resistive, IR, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

USB

Audio

N/A

Touch Connector

USB

Power Connector

USB


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

10W


Order Information

12.1USB Powered LCD Monitor with Resistive Touch

ITD12CMT1HR0U

12.1USB Powered LCD Monitor with IR Touch

ITD12CMT2HR0U

12.1USB Powered LCD Monitor with PCAP Touch

ITD12CMT5HR0U

12.1USB Powered LCD Monitor with Tempered Glass

ITD12CMG1HR0U

Next13.3 inch USB Powered Touch Screen LCD Monitor
Previous10.4 inch USB Powered Touch Screen LCD Monitor
