12.1 inch Wide Screen Full IP67 Waterproof Stainless Steel Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP66 ratings from all directions
- Stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP66 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive and PCAP
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP65/IP66 touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. ITD full IP65/IP66 touch panel PCs come with industrial -grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI applications.



Full IP65/IP66 Touchscreen Panel PC

Model Name

ITD12PPCG1IP**W

IP Rating

IP65/IP66(IP67 optional)


PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM1(Intel J4125/J6412) 2DDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM 2 (8th~12th Gen.)
HDD/SSD: Default to?16G, Max. 128G Storage: 1MSATA, 1SATA
1M.2 (not available for J1900) Default to 64GB SSD
Storage: 1MSATA, 1SATA
1M.2 Default to 64GB SSD
1HDMI Output; COM optional 1VGA, 1HDMI 1VGA, 1HDMI
2USB, Max. 4USB, 1USB OTG (optional) 2USB 2.0, 2USB3.0, Max. 6 2USB 2.0, 2USB3.0, Max. 6
1TF Card Slot(Supports 8~128G) 2COM, Max. 6 2COM, Max. 6
1LAN 1LAN, Dual LAN optional 1LAN, Dual LAN optional
1Audio Out 1Realtek ALC662 , 1Line-Out/MIC In 1Realtek ALC662 , 1Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)
Windows 7/10, Linux
Windows 11(available for 7th gen. or above)

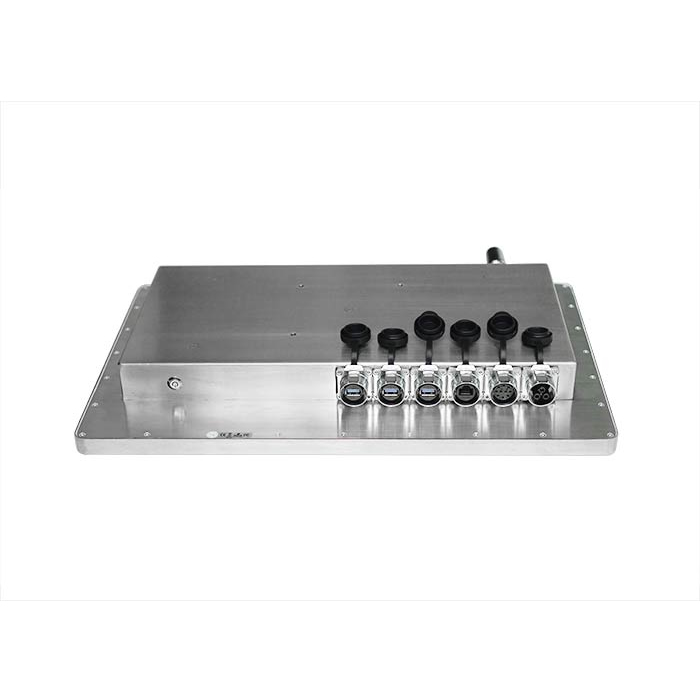

Default IP65 Connectors:  2USB 2.0, 1LAN, 1DC 2.0


LCD Panel

Screen Diagonal (Inch/cm)

12.1

Display Active Screen Size (mm)

261.12(H) x 163.2(V)mm

Aspect Ratio

16:10

Physical Resolution

1280 x 800

Maximum Resolution Supported

1920 x 1200

Colors

16.2M

Brightness (cd/m2)

300nits

Contrast Ratio

800:1

View Angels

80/80/65/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, PCAP, Infrared

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

18W~35W


Order Information

12.116:10 Full IP65/IP66 Panel PC with Resistive Touch, Android RK3288

ITD12PPCT1IPSE1W

12.116:10 Full IP65/IP66 Panel PC with PCAP Touch, Android RK3288

ITD12PPCT5IPSE1W

12.116:10 Full IP65/IP66 Panel PC with Tempered Glass, Android RK3288

ITD12PPCG1IPSE1W

12.116:10 Full IP65/IP66 Panel PC with Resistive Touch, J1900

ITD12PPCT1IPSJ1W

12.116:10 Full IP65/IP66 PC with PCAP Touch, J1900

ITD12PPCT5IPSJ1W

12.116:10 Full IP65/IP66 Panel PC with Tempered Glass, J1900

ITD12PPCG1IPSJ1W

12.116:10 Full IP65/IP66 Panel PC with Resistive Touch, i3

ITD12PPCT1IPSI3W

12.116:10 Full IP65/IP66 Panel PC with PCAP Touch, i3

ITD12PPCT5IPSI3W

12.116:10 Full IP65/IP66 Panel PC with Tempered Glass, i3

ITD12PPCG1IPSI3W

12.116:10 Full IP65/IP66 Panel PC with Resistive Touch, i5

ITD12PPCT1IPSI5W

12.116:10 Full IP65/IP66 Panel PC with PCAP Touch, i5

ITD12PPCT5IPSI5W

12.116:10 Full IP65/IP66 Panel PC with Tempered Glass, i5

ITD12PPCG1IPSI5W

12.116:10 Full IP65/IP66 Panel PC with Resistive Touch, i7

ITD12PPCT1IPSI7W

12.116:10 Full IP65/IP66 Panel PC with PCAP Touch, i7

ITD12PPCT5IPSI7W

12.116:10 Full IP65/IP66 Panel PC with Tempered Glass, i7

ITD12PPCG1IPSI7W
