12.1 inch Wide Screen High Bright Flat Bezel Panel Mount Panel PC

Products > Sunlight Readable LCD > High Bright Sunlight Readable Panel PC Flat Bezel Panel Mount > 12.1 inch Wide Screen High Bright Flat Bezel Panel Mount Panel PC

BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean
- Optional touchscreens like resistive, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- High brightness from 1000nits optional bonding optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial sunlight readable panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. Industrial panel mount panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor, outdoor applications.

Flat Bezel High Brightness Industrial Panel PC

Model Name

ITD12PPCG1HBX**W

IP Rating

IP65 Front Panel

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900/J4125/J6412 2.0GHz	Intel Core i3/i5/i7 (4th~12th Generation optional)
Chipset: Rockchip	Chipset: Intel Bay Trail SoC	Intel SoC Chipset
Memory:Default to 2G, 4G/8G optional	Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD:Default to 16G, Max. 128G	Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD

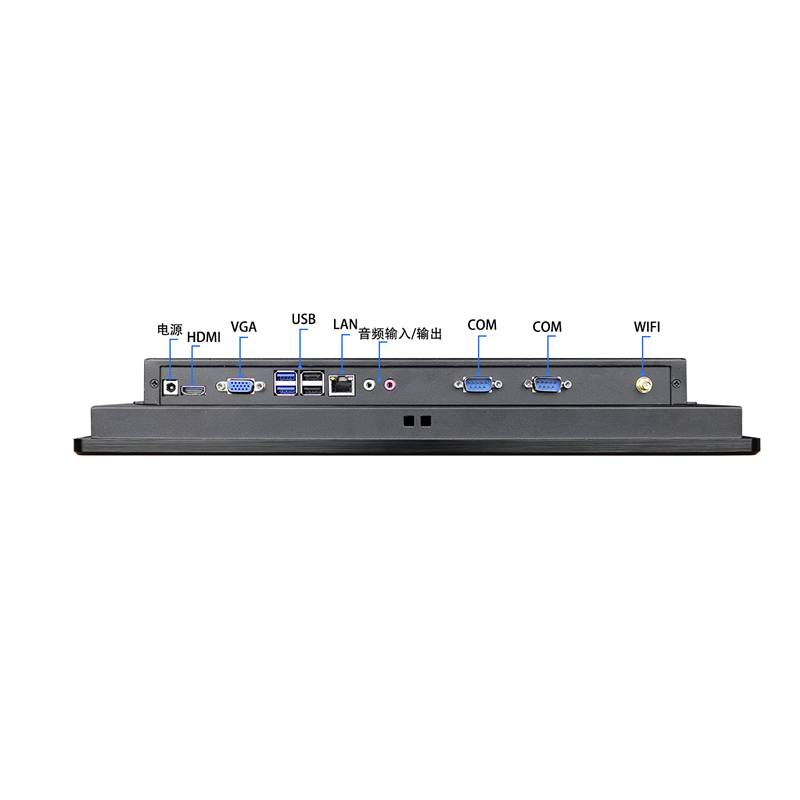

1×HDMI Output; COM optional	1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional)	2×USB 2.0, 2×USB3.0, Max. 6	2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G)	2×COM, Max. 6	2×COM, Max. 6
1×LAN	1×LAN, Dual LAN optional	1×LAN, Dual LAN optional
1×Audio Out	1×Realtek ALC662 , 1×Line-Out/MIC In	1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7th gen. or above)

LCD Panel

Screen Diagonal (Inch/cm)

12.1”

Display Active Screen Size (cm)

261.12(H) x 163.2(V)mm

Aspect Ratio

16:10

Physical Resolution

1280 x 800

Maximum Resolution Supported

1920 x 1200

Colors

16.2M

Brightness (cd/m2)

1000nits

Contrast Ratio

800:1

View Angels

80/80/65/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V (9-36V input optional)

Power Consumption

25W

Order Information

12.1” 16:10 1000nits Panel Mount Panel PC with Resistive Touch, Android RK3288

ITD12PPCT1HBXE2W

12.1” 16:10 1000nits Panel Mount Panel PC with PCAP Touch, Android RK3288

ITD12PPCT5HBXE2W

12.1” 16:10 1000nits Panel Mount Panel PC with Tempered Glass, Android RK3288

ITD12PPCG1HBXE2W

12.1” 16:10 1000nits Panel Mount Panel PC with Resistive Touch, J1900

ITD12PPCT1HBXJ2W

12.1” 16:10 1000nits Panel Mount Panel PC with PCAP Touch, J1900

ITD12PPCT5HBXJ2W

12.1” 16:10 1000nits Panel Mount Panel PC with Tempered Glass, J1900

ITD12PPCG1HBXJ2W

12.1” 16:10 1000nits Panel Mount Panel PC with Resistive Touch, i3

ITD12PPCT1HBXI3W

12.1” 16:10 1000nits Panel Mount Panel PC with PCAP Touch, i3

ITD12PPCT5HBXI3W

12.1” 16:10 1000nits Panel Mount Panel PC with Tempered Glass, i3

ITD12PPCG1HBXI3W

12.1” 16:10 1000nits Panel Mount Panel PC with Resistive Touch, i5

ITD12PPCT1HBXI5W

12.1” 16:10 1000nits Panel Mount Panel PC with PCAP Touch, i5

ITD12PPCT5HBXI5W

12.1” 16:10 1000nits Panel Mount Panel PC with Tempered Glass, i5

ITD12PPCG1HBXI5W

12.1” 16:10 1000nits Panel Mount Panel PC with Resistive Touch, i7

ITD12PPCT1HBXI7W

12.1” 16:10 1000nits Panel Mount Panel PC with PCAP Touch, i7

ITD12PPCT5HBXI7W

12.1” 16:10 1000nits Panel Mount Panel PC with Tempered Glass, i7

ITD12PPCG1HBXI7W
