FEATURES
- 12.1-inch widescreen TFT LCD offering 1280 ¡Á 800 resolution, delivering crisp visuals for HMI, control, and industrial monitoring applications
- Seamless flush front panel with protective edges, reducing dust buildup and enabling fast, easy cleaning in demanding production or operator-heavy environments
- Rugged steel enclosure with reinforced aluminum front bezel, engineered to withstand mechanical shocks, vibrations, and continuous heavy-duty use
- IP65-rated front panel, providing reliable protection against water splashes, dust, grease, and harsh industrial contaminants
- Designed for round-the-clock 24/7 operation, ensuring consistent and stable performance in automated machinery and industrial control systems
- Flexible touch options, including resistive single-touch and multi-touch PCAP, configurable for a wide range of industrial and operator requirements
- Wide DC voltage range, supporting 12V standard input or 9¨C36V DC, suitable for stationary, mobile, and vehicle-mounted applications
- Versatile installation methods, including embedded panel mounting, wall mounting, tabletop placement, or VESA arm mounting, for maximum deployment flexibility
- Long-term product lifecycle and supply assurance, helping reduce redesign costs, simplify maintenance, and maintain system continuity across extended project timelines
Panel Mount Touch Screen Monitor | |
| Model Name | ITD12PMT5X1W_V2 |
| IP Rating | IP65 Front Panel |
LCD Panel | |
| Screen Diagonal (Inch) | 12.1¡± |
| Display Active Screen Size (mm) | 262.565(W)¡Á164.16(H) |
| Aspect Ratio | 16:10 |
| Physical Resolution | 1280¡Á800 |
| Pixel Pitch(mm) | 0.2052¡Á0.2052 |
| Colors | 16.7M |
| Response Time | 30ms |
| Brightness (cd/m2) | 450 (500~1000 optional) |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/85/85 |
| Backlight/Backlight Lifetime | LED Backlight with 30000Hours'Lifetime |
Touch Panel | |
| Touch Options | PCAP, Resistive |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |

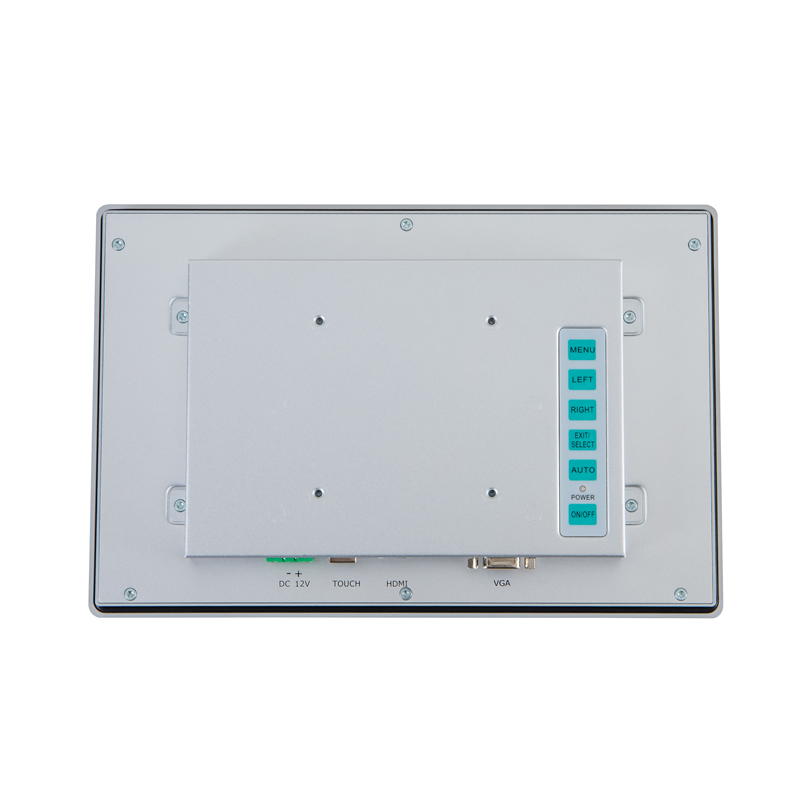

Input / Output | |
| Video Input | 1 ¡Á VGA |
| 1 ¡Á DVI-I, 1 ¡Á Display Port(optional) | |
| 1 ¡Á HDMI | |
| Audio | 1 ¡Á PC-Audio |
| Touch Connector | 1 ¡Á USB |
| Power Connector | 1 ¡Á Phoenix Connector |
Operation | |
| Operating Temperature Range | -10~60¡ãC (-20~70¡ãC Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
Power | |
| Power Indicator | Green LED |
| Power Input | DC9~28V input |
| Power Consumption | 10W |
Order Information | |
| 12.1¡± 16:10 Panel Mount LCD Monitor with Resistive Touch | ITD12PMT1X1W_V2 |
| 12.1¡± 16:10 Panel Mount LCD Monitor with PCAP Touch | ITD12PMT5X1W_V2 |
| 12.1¡± 16:10 Panel Mount LCD Monitor with Tempered Glass | ITD12PMG1X1W_V2 |
| 12.1¡± 16:10 1000nits Panel Mount LCD Monitor with Resistive Touch | ITD12PMT1HBX2W_V2 |
| 12.1¡± 16:10 1000nits Panel Mount LCD Monitor with PCAP Touch | ITD12PMT5HBX2W_V2 |
| 12.1¡± 16:10 1000nits Panel Mount LCD Monitor with Tempered Glass | ITD12PMG1HBX2W_V2 |
