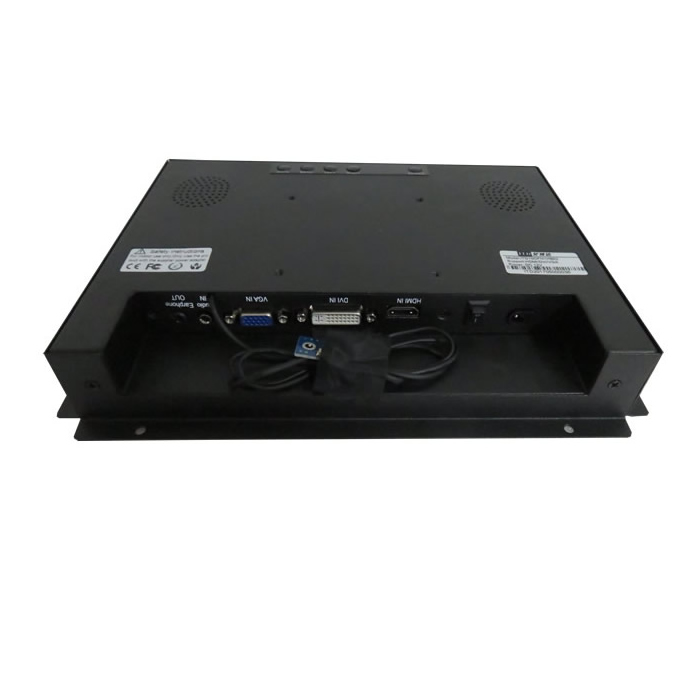

Open Frame High Brightness LCD Monitor

Model Name

ITD12OFN1HB02W

IP Rating

N/A

LCD Panel

Screen Diagonal (Inch/cm)

12.1”

Display Active Screen Size (mm)

261.12(H) ×163.2(V)

Aspect Ratio

16:10

Physical Resolution

1280×800

Maximum Resolution Supported

1920×1200

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

1000:1

View Angels

80/80/80/60

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

1 × USB

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

22W

Order Information

12.1”16:10 1000nits Open Frame LCD Monitor with Resistive Touch

ITD12OFT1HB02W

12.1”16:101000nits Open Frame LCD Monitor with IR Touch

ITD12OFT2HB02W

12.1”16:101000nits Open Frame LCD Monitor with SAW Touch

ITD12OFT3HB02W

12.1”16:101000nits Open Frame LCD Monitor with PCAP Touch

ITD12OFT5HB02W

12.1”16:101000nits Open Frame LCD Monitor with Tempered Glass

ITD12OFG1HB02W

12.1”16:101500nits Open Frame LCD Monitor with Resistive Touch

ITD12OFT1HB01W

12.1”16:101500nits Open Frame LCD Monitor with IR Touch

ITD12OFT2HB01W

12.1”16:101500nits Open Frame LCD Monitor with SAW Touch

ITD12OFT3HB01W

12.1”16:101500nits Open Frame LCD Monitor with PCAP Touch

ITD12OFT5HB01W

12.1”16:101500nits Open Frame LCD Monitor with Tempered Glass

ITD12OFG1HB01W
