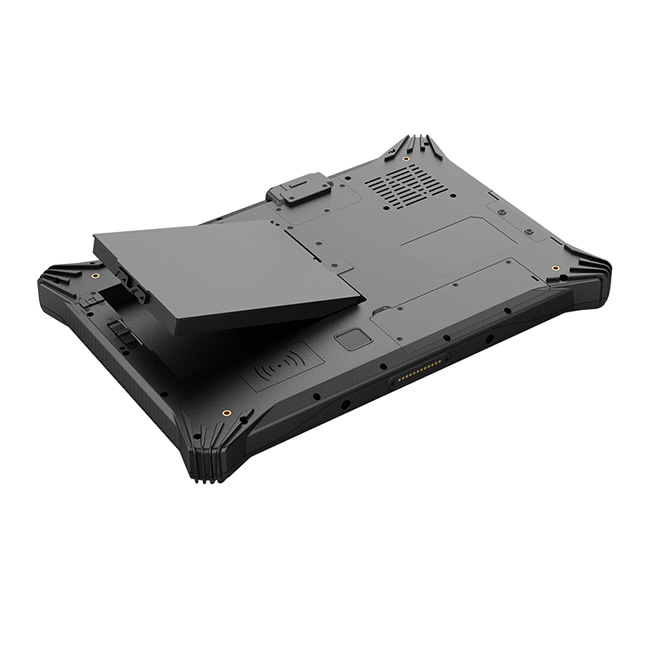

12.2 inch Rugged Windows Tablet PC I20J
FEATURES
- Intel Celeron quad-core processor (up to 2.90 GHz)
- Windows 10 OS and 8GB RAM£«128GB storage
- 12.2 inch IPS Full HD screen with 5-point capacitive touch
- Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet, DB9 and USB2.0
- Support GPS, BDS and GLONASS
- Equipped with multiple accessories, like docking charger,
- Hand-strap, vehicle mount, car charge, carry handle optional
- IP65 Waterproof and Dustproof
- Vibration & 1.22m drop resistant
- MIL-STD-810G certified
OVERVIEW
ITD¡¯s Rugged tablet PCs with Windows allows abuses of everyday on-the-job use that are designed to withstand more challenges than their consumer-grade counterparts, with a much longer lifecycle. A variety of inputs and outputs designed to connect to equipment or transfer data and multiple wireless connectivity options bring the adaptability needed to match an ever-changing digital environment.  And with many available ITD rugged tablet pc attachments and modules like vehicle docks, docking charger, hand-strap hot-swappable batteries, UHF, RFID, NFC, fingerprint, QR reader, barcode scanner and more, you'll be amazed at the increase in productivity seen in your organization. Many of our tablets come with mounting solutions, including vehicle mounts to be used in heavy-duty machines or vehicles.


12.2 inch Rugged Windows Tablet PC I20J

Model Name ITD122PPCT5-I20J
IP Rating IP65

Basic Parameter

Dimensions 339.3¡Á230.3¡Á26mm
Weight Device Unit 1500g
Device Color Black
LCD Panel 12.2 inch IPS 16:10, 1200¡Á1920, 650nits
Touch Panel 5 point G+G Capacitive Touch Screen Corning Gorilla Glass
Camera Front 5.0MP Rear 8.0MP
I/O USB 3.0 Type-A¡Á1, USB Type-C¡Á1,
SIM Card¡Á1, TF Card¡Á1,
HDMI 1.4a¡Á1,
12pins Pogo Pin¡Á1,
¦µ3.5mm standard earphone jack¡Á1,
¦µ5.5mm DC jack¡Á1
Power AC100-240V, 50Hz/60Hz, Output DC 19V/3.42A

Performance Parameters

CPU Intel? Celeron? Processor N5105
RAM 8G/16G
Storage 128GB
OS Windows 10

Battery

Capacity 7.4V/6300mAh
Type Removable Li-polymer battery
Endurance 5hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )

Communication

WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.2
GNSS Built-in Glonass, Beidou, GPS
4G (Optional) LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40
WCDMA: B1/B5/B8, GSM: B3/B8

Extension Modules

Ethernet interface RJ45 (10/100M) x 1
Serial port DB9 (RS232) x 1
USB2.0 USB 2.0 x 1
2D EM80, Optical resolution: 5mil/scan speed: 50 times/s

Reliability

Operating Temperature Range -20 ¡ãC ~ 60 ¡ãC
Storage Temperature Range -30 ¡ãC ~ 70 ¡ãC
Humidity 95% non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
