Products > Industrial Touchscreen LCD > Flat Bezel Panel Mount Panel PCs  >  13.3 inch Panel Mount Touch Screen Monitor

OVERVIEW
ITD industrial panel mount LCD monitors are engineered for demanding industrial environments, delivering high reliability, extended durability, and consistent performance for continuous operation. Featuring a robust steel housing with reinforced aluminum front bezel, these displays are designed to withstand vibration, mechanical shocks, and harsh factory conditions, making them ideal for industrial automation, HMI systems, and machine control applications. The IP65/NEMA 4-rated front panel combined with high-strength tempered glass provides protection against dust, water, oil, and industrial contaminants, ensuring the displays remain fully operational in tough conditions. The flat front design supports both resistive and projected capacitive (PCAP) touchscreens, offering easy cleaning, low-maintenance operation, and reliable touch response, which is crucial for high-use industrial environments and hygiene-critical applications. With a long product lifecycle and stable supply, these monitors help reduce system redesign costs, maintain project continuity, and ensure reliable HMI performance over the duration of industrial projects. ITD industrial panel mount displays are ideal for factory automation, machine monitoring, human-machine interfaces, kiosks, food and beverage processing equipment, in-vehicle industrial systems, and marine applications, delivering durable, high-performance, and reliable display solutions.

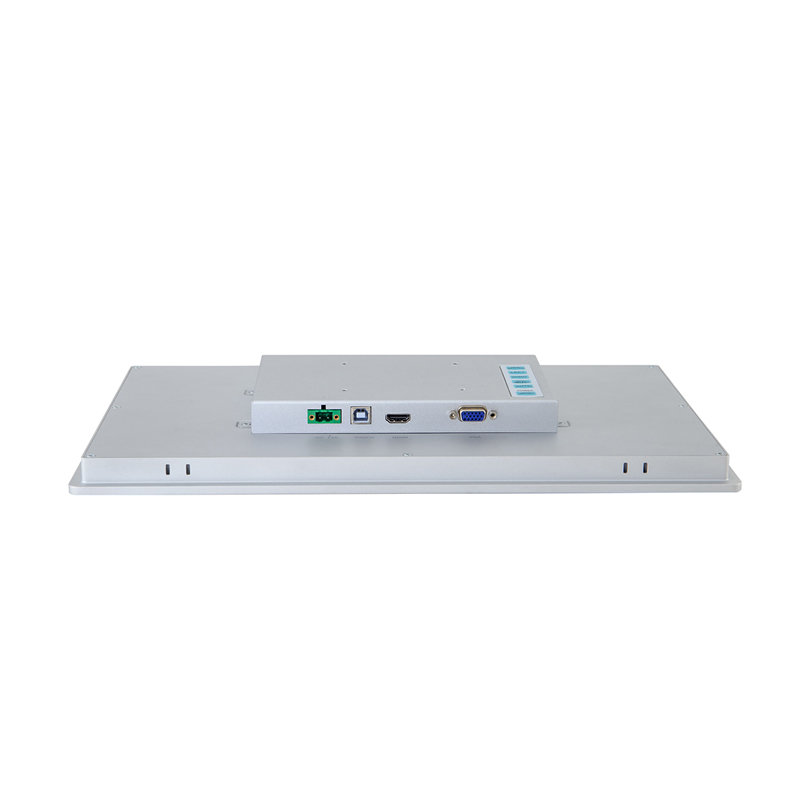

Panel Mount Touch Screen Monitor
Model Name	ITD13PMT5X1_V2
IP Rating	IP65 Front Panel
LCD Panel
Screen Diagonal (Inch)	13.3”
Display Active Screen Size (mm)	293.76(W)×165.24(H)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Pixel Pitch(mm)	0.153×0.153
Colors	16.7M
Response Time	30ms
Brightness (cd/m2)	300 (500~1000 optional)
Contrast Ratio	800:1
View Angels	85/85/85/85
Backlight/Backlight Lifetime	LED Backlight with 30000Hours'Lifetime
Touch Panel
Touch Options	PCAP, Resistive
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I, 1 × Display Port(optional)
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × Phoenix Connector
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC9~28V input
Power Consumption	10W
Order Information
13.3”Panel Mount LCD Monitor with Resistive Touch	ITD13PMT1X1_V2
13.3”Panel Mount LCD Monitor with PCAP Touch	ITD13PMT5X1_V2
13.3”Panel Mount LCD Monitor with Tempered Glass	ITD13PMG1X1_V2
13.3”1000nits Panel Mount LCD Monitor with Resistive Touch	ITD13PMT1HBX2_V2
13.3”1000nits Panel Mount LCD Monitor with PCAP Touch	ITD13PMT5HBX2_V2
13.3”1000nits Panel Mount LCD Monitor with Tempered Glass	ITD13PMG1HBX2_V2
