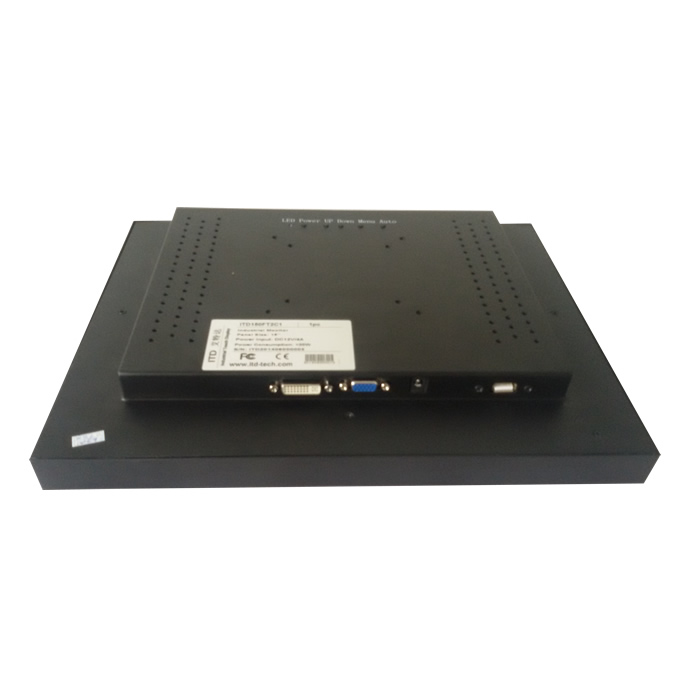

Chassis LCD Monitor

Model Name

ITD15CMN101

IP Rating

N/A

LCD Panel

Screen Diagonal (Inch)

15”

Display Active Screen Size (mm)

304.13(H)×228.1(V)

Aspect Ratio

4:3

Physical Resolution

1024×768

Maximum Resolution Supported

1980×1080

Colors

262K

Brightness (cd/m2)

250

Contrast Ratio

700:1

View Angels

80/80/60/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours’Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

1 × USB

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

20W

Order Information

15”Chassis LCD Monitor with Resistive Touch

ITD15CMT101

15”Chassis LCD Monitor with IR Touch

ITD15CMT201

15”Chassis LCD Monitor with SAW Touch

ITD15CMT301

15”Chassis LCD Monitor with PCAP Touch

ITD15CMT501

15”Chassis LCD Monitor with Tempered Glass

ITD15CMG101
