Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged Full IP65 IP66 Touchscreen Panel PC  >  15 inch Full IP65/IP66 Touchscreen Panel PC

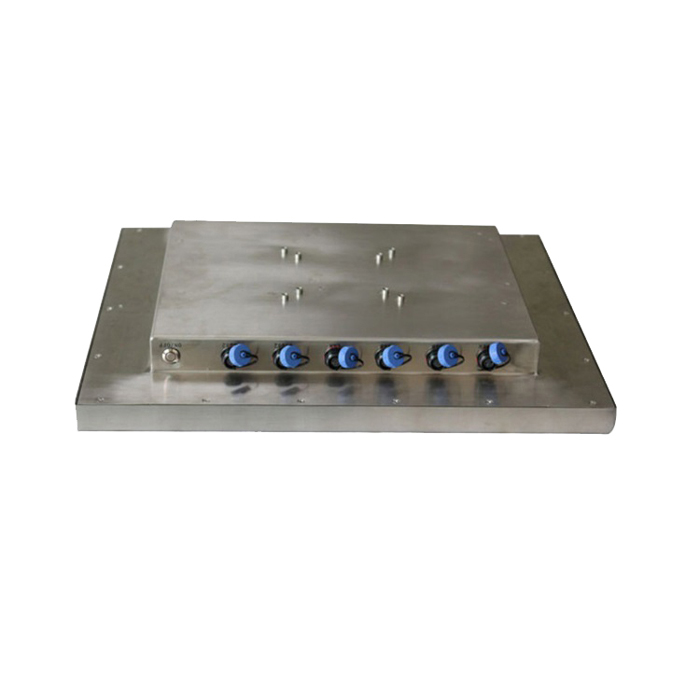

15 inch Full IP65/IP66 Touchscreen Panel PC
BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
-Solid steel and stainless steel or aluminum alloy enclosures
-IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
-Easy-to-install VESA(75/100mm) wall mounting
-Optional touchscreens like resistive and PCAP
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP65 touchpanel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. ITD full IP65 touch panel PCs come with industrial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities whichare ideal for harsh environments of process manufacturing, discrete manufacturing, industrialautomation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI applications.




Full IP65/IP66 Touchscreen Panel PC

Model Name

ITD15PPCG1IP**

IP Rating

IP65/IP66(IP67 optional)


PC Systems Options



ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD: Default to?16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD
Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD
1¡ÁHDMI Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)
Windows 7/10, Linux
Windows 11(available for 7th gen. or above)

Default IP65 Connectors:  2¡ÁUSB 2.0, 1¡ÁLAN, 1¡ÁDC 2.0


LCD Panel



Screen Diagonal (Inch/cm)

15¡±

Display Active Screen Size (mm)

304.1(H)x228.1(V)mm

Aspect Ratio

4:3

Physical Resolution

1024x768

Maximum Resolution Supported

1920x1080

Colors

16.7M

Brightness (cd/m2)

250nits

Contrast Ratio

700:1

View Angels

80/80/60/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯Lifetime


Touch Panel



Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC12V

Power Consumption

26W


Order Information



15¡±Full IP65/IP66Panel PC with Resistive Touch, J1900

ITD15PPCT1IPJ1

15¡±Full IP65/IP66 Panel PC with PCAP Touch, J1900

ITD15PPCT5IPJ1

15¡±Full IP65/IP66 Panel PC with Tempered Glass, J1900

ITD15PPCG1IPJ1

15¡±Full IP65/IP66 Panel PC with Resistive Touch, i3

ITD15PPCT1IPI3

15¡±Full IP65/IP66 Panel PC with PCAP Touch, i3

ITD15PPCT5IPI3

15¡±Full IP65/IP66 Panel PC with Tempered Glass, i3

ITD15PPCG1IPI3
