Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged IP69K Stainless Steel Panel PC  >  15 inch IP69K Stainless Steel Touchscreen Panel PC

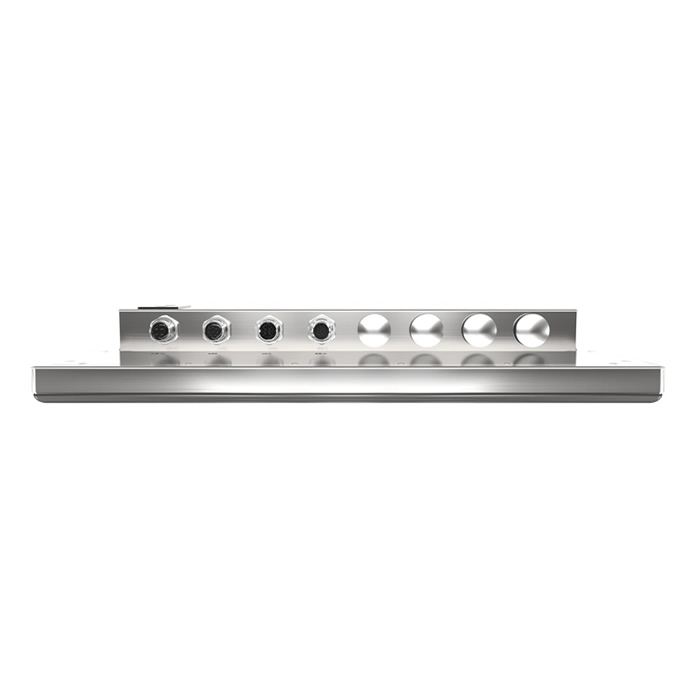

15 inch IP69K Stainless Steel Touchscreen Panel PC
BENEFITES
- Stainless Steel Construction: The housing of an IP69K stainless steel panel PC is made of high-quality stainless steel, which provides excellent resistance to corrosion and ensures long-term durability.
- Fully-Sealed Design: The panel PC is fully sealed to prevent water and dust from entering the system. The sealing is achieved through gaskets, O-rings and other sealing mechanisms, which ensures that the system is protected from harsh environments.
- High Temperature Resistance: The IP69K stainless steel panel PC is designed to withstand high temperatures of up to 80¡ãC. This feature is particularly important in environments where the PC may be subjected to heat, such as in food processing plants.
- Water and Dust Resistance: The IP69K stainless steel panel PC is designed to be water and dust-resistant, making it ideal for use in environments with high-pressure water and dust exposure. The system can withstand water pressure of up to 100 bar and high-temperature water up to 80¡ãC.
- Touch Screen: The panel PC has a touch screen interface that allows users to interact with the system without the need for a keyboard or mouse. The touch screen is made of toughened glass and is designed to withstand the harsh environment.
- High Processing Power: The IP69K stainless steel panel PC is equipped with a powerful processor, allowing it to handle demanding applications and process large amounts of data quickly.
- Flexible Mounting Options: The panel PC can be mounted in various ways, such as on a wall, stand, or swing arm. This feature allows for easy integration into different types of systems and environments.
- Long lifespan: Stainless steel is known for its long lifespan, which means that equipment made from this material can last for many years, reducing the need for frequent replacements.
OVERVIEW
ITD¡¯s IP69K stainless steel panel PC is a rugged and durable industrial computer that is built to withstand the toughest conditions and provide reliable performance in harsh environments. The stainless steel construction of the panel PC provides additional protection against corrosion, which makes it well-suited for use in environments where the equipment is exposed to harsh chemicals or acids. The panel PC may include a range of features, such as a high brightness display, a touchscreen interface, vibration and shock resistance, and a wide temperature range, to ensure reliable and efficient performance in a variety of industrial applications.


IP69K Touchscreen Panel PC

Model Name ITD15PPCG1IP**-69K
IP Rating IP69K

PC Systems Options

ARM Android Based RK3288(RK3566/RK3399 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel? Celeron J1900/J4125/J6412 CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th Gen. optional)
Chipset: Rockchip Chipset: Intel? SOC Chipset: Intel? SOC
Memory: 2G, max. 4G Memory: 4GB(Max. 16GB) Memory: 4GB(Max. 32GB)
HDD/SSD: 8G, max. 128G HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2(available for J4125/J6412)
HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2
1¡ÁHDMI (optional) 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB 2.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡Ámini-SD slot 2¡ÁCOM(RS232/422/485) 2¡ÁCOM(RS232/422/485)
1¡ÁLAN 1¡ÁLAN 1¡ÁLAN
1¡ÁAudio Out 1¡ÁAudio Out, 1¡ÁMIC In 1¡ÁAudio Out, 1¡ÁMIC In
Expansion: COM port Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
Android, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported


Default Waterproof Circular(M12) Connectors:  2
¡ÁUSB 2.0, 1¡ÁCOM, 1¡ÁLAN, 1¡ÁDC


LCD Panel

Screen Diagonal (Inch/cm) 15¡±
Display Active Screen Size (mm) 304.128(H) ¡Á228.096(V)mm
Aspect Ratio 4:3
Physical Resolution 1024¡Á768
Response Time 8ms
Colors 262K/16.2M
Brightness (cd/m2) 350nits (1000nits, 1500nits optional)
Contrast Ratio 700:1
View Angels 80/80/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel

Touch Options Resistive, PCAP, Infrared
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -20~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED by Power Switch
Power Input DC 12V(DC9-36V, AC100-240V input optional)
Power Consumption 25~45W

Order Information

15¡±Full IP69K Panel PC with Resistive Touch, Intel J1900 ITD15PPCT1IPSJ1-69K
15¡±Full IP69K Panel PC with PCAP Touch, Intel J1900 ITD15PPCT5IPSJ1-69K
15¡±Full IP69K Panel PC with Tempered Glass, Intel J1900 ITD15PPCG1IPSJ1-69K
15¡±Full IP69K Panel PC with Resistive Touch, Intel J4124 ITD15PPCT1IPSJ4-69K
15¡±Full IP69K Panel PC with PCAP Touch, Intel J4125 ITD15PPCT5IPSJ4-69K
15¡±Full IP69K Panel PC with Tempered Glass, Intel J4125 ITD15PPCG1IPSJ4-69K
15¡±Full IP69K Panel PC with Resistive Touch, Intel J6412 ITD15PPCT1IPSJ6-69K
15¡±Full IP69K Panel PC with PCAP Touch, Intel J6412 ITD15PPCT5IPSJ6-69K
15¡±Full IP69K Panel PC with Tempered Glass, Intel J6412 ITD15PPCG1IPSJ6-69K
15¡±Full IP69K Panel PC with Resistive Touch, Intel i3 ITD15PPCT1IPSI3-69K
15¡±Full IP69K Panel PC with PCAP Touch, Intel i3 ITD15PPCT5IPSI3-69K
15¡±Full IP69K Panel PC with Tempered Glass, Intel i3 ITD15PPCG1IPSI3-69K
15¡±Full IP69K Panel PC with Resistive Touch, Intel i5 ITD15PPCT1IPSI5-69K
15¡±Full IP69K Panel PC with PCAP Touch, Intel i5 ITD15PPCT5IPSI5-69K
15¡±Full IP69K Panel PC with Tempered Glass, Intel i5
