15 inch PCAP Touch Panel Mounted PC
BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean

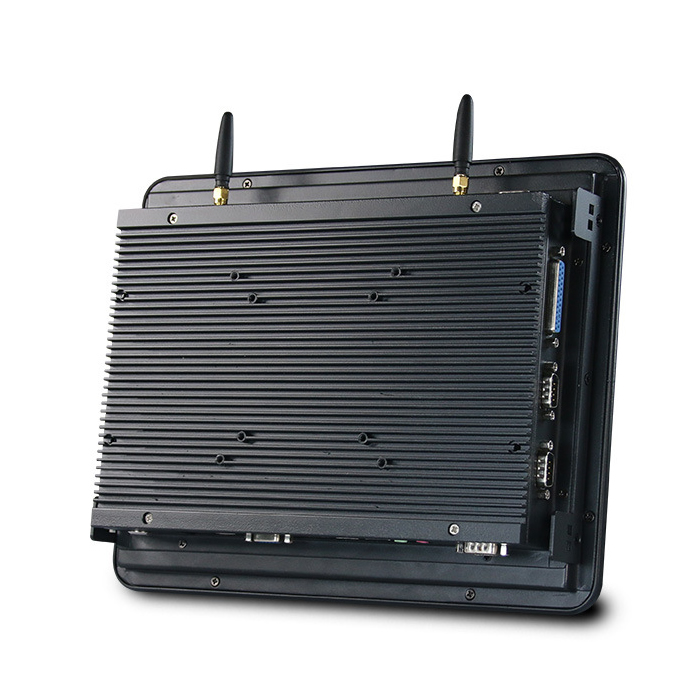

-Excellent heat dissipation with aluminum fin, fan-less design
-All robust aluminum construction designed for harsh and industrialenvironments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with NEMA 4/ IP65 front panel
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial PCAP touch panel mounted PCs provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminumenclosuresand highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments.The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean.TheIndustrial PCAP touchpanel PCs come with industrial LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilitiesare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.




PCAP Touch Panel Mounted PC

Model Name

ITD15PPCT5Q**

IP Rating

IP65 Front Panel


PC Systems Options



X86 Windows Based

CPU: Intel Celeron J1900

Chipset: Intel HD Graphics, Support 1080p

Memory: 2GB(Max. 8GB)

HDD/SSD:500G/64G

1VGA, 1HDMI

2USB 2.0, 2USB3.0

1COM(RS232/422/485)

1LAN

1Audio Out, 1MIC In

Expansion: USB, COM, Mini-PCIe

X86 Windows Based

CPU: Intel Core i3/i5/i7

Chipset: Intel HD Graphics, Support 1080p

Memory: 2GB(Max. 16GB)

HDD/SSD:500G/64G

1VGA, 1HDMI

2USB 2.0, 2USB3.0

1COM(RS232/422/485)

1LAN

1Audio Out, 1MIC In

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

15

Display Active Screen Size (cm)

304.13(H)228.09(V)

Aspect Ratio

4:3

Physical Resolution

1024768

Maximum Resolution Supported

19201080

Colors

16.2M

Brightness (cd/m2)

250nits

Contrast Ratio

700:1

View Angels

80/80/60/80

Backlight/Backlight Lifetime

LED Backlight with 50000HoursLifetime


Touch Panel



Touch Options

Projected Capacitive Touch Panel

Touch Drivers

Windows 7/8/10, Linux, Android, Mac


Operation

Operating Temperature Range

-10~60C (-20~70COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

30W


Order Information



15PCAP Touch Panel Mounted PC with J1900

ITD15PPCT5QJ1

15PCAP Touch Panel Mounted PC with i3

ITD15PPCT5QI3

15PCAP Touch Panel Mounted PC with i5

ITD15PPCT5QI5

15PCAP Touch Panel Mounted PC with i7

ITD15PPCT5QI5
