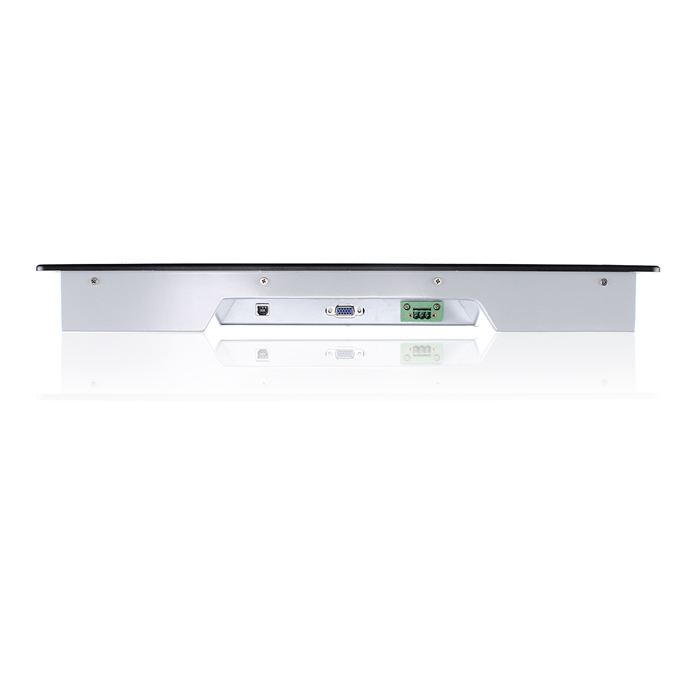

15 inch Rack Mount LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install for rack mounting enclosure
-Robust design with aluminum NEMA 4/ IP65 front panel
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD rack mount monitors coming with heavy-duty steel are built to withstand harsh working environments and fit into standard rack cabinet. It features all steel construction with a rack mountable aluminum bezel. The concept of design features a display terminal and rugged metal construction for harshly and cost-sensitive industrial computing applications. .The tempered glass is mounted in front of the industrial monitor to protect against impact on the LCD monitor. It protects against dust and offers better display clarity. The systems are designed to meet military shock, vibration, and environmental standards.




Rack Mount LCD
Monitor

Model Name

ITD15RMN101

IP Rating

IP65 Front Panel


LCD Panel

Screen Diagonal (Inch/cm)

15

Display Active Screen Size (mm)

304.128(H) 228.096(V)

Aspect Ratio

4:3

Physical Resolution

1024768

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

250nits

Contrast Ratio

700 : 1

View Angels

80/80/60/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel



Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 VGA

1 DVI-I(Optional)

1 HDMI(Optional

Audio

1 PC-Audio

Touch Connector

1 USB(Optional)

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

15W


Order Information

15Rack Mount LCD Monitor with Resistive Touch

ITD15RMT101

15Rack Mount LCD Monitor with PCAP Touch

ITD15RMT501

15Rack Mount LCD Monitor with Tempered Glass

ITD15RMG101
