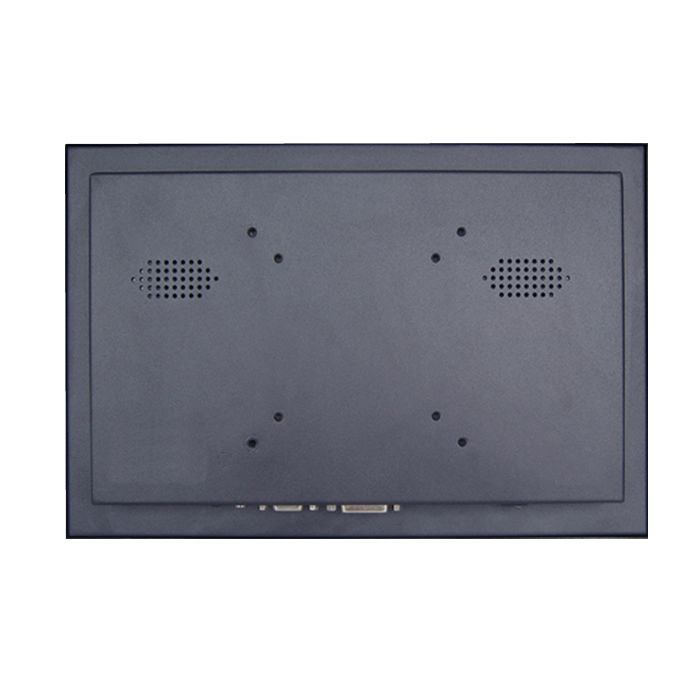

15.6 inch Chassis High Bright Sunlight Readable LCD Monitor
BENEFITES
-Exceptional quality and highly engineered sunlight readable LCD monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install cabinet and chassis VESA-mount display
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis sunlight readable LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial/commercial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. High brightness chassis LCD monitors are ideal for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminals and industrial machinery builder for indoor, semi-outdoor or outdoor applications. ITD full-range selection is provided in screen sizes from 6.5¡±~84¡±.




Chassis High Brightness LCD Monitor

Model Name

ITD156CMN1HB02

IP Rating

IP65 Front Optional


LCD Panel

Screen Diagonal (Inch/cm)

15.6¡±

Display Active Screen Size (mm)

344.16(H) ¡Á193.59V)

Aspect Ratio

16:9

Physical Resolution

1366¡Á768(1920¡Á1080 optional)

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

700:1

View Angels

80/80/80/70

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

25W


Order Information

15.6¡±1000nits Chassis LCD Monitor with Resistive Touch

ITD156CMT1HB02

15.6¡±1000nits Chassis LCD Monitor with IR Touch

ITD156CMT2HB02

15.6¡±1000nits Chassis LCD Monitor with SAW Touch

ITD156CMT3HB02

15.6¡±1000nits Chassis LCD Monitor with PCAP Touch

ITD156CMT5HB02

15.6¡±1000nits Chassis LCD Monitor with Tempered Glass

ITD156CMG1HB02

15.6¡±1500nits Chassis LCD Monitor with Resistive Touch

ITD156CMT1HB01

15.6¡±1500nits Chassis LCD Monitor with IR Touch

ITD156CMT2HB01

15.6¡±1500nits Chassis LCD Monitor with SAW Touch

ITD156CMT3HB01

15.6¡±1500nits Chassis LCD Monitor with PCAP Touch

ITD156CMT5HB01

15.6¡±1500nits Chassis LCD Monitor with Tempered Glass

ITD156CMG1HB01

Next£º17 inch Chassis High Bright Sunlight Readable LCD Monitor
Previous£º15 inch Chassis High Bright Sunlight Readable LCD Monitor
