Products > Sunlight Readable LCD > High Bright Sunlight Readable LCD Monitor Flat Bezel  >  15.6 inch High Brightness Flat Bezel Panel Mount LCD Monitor

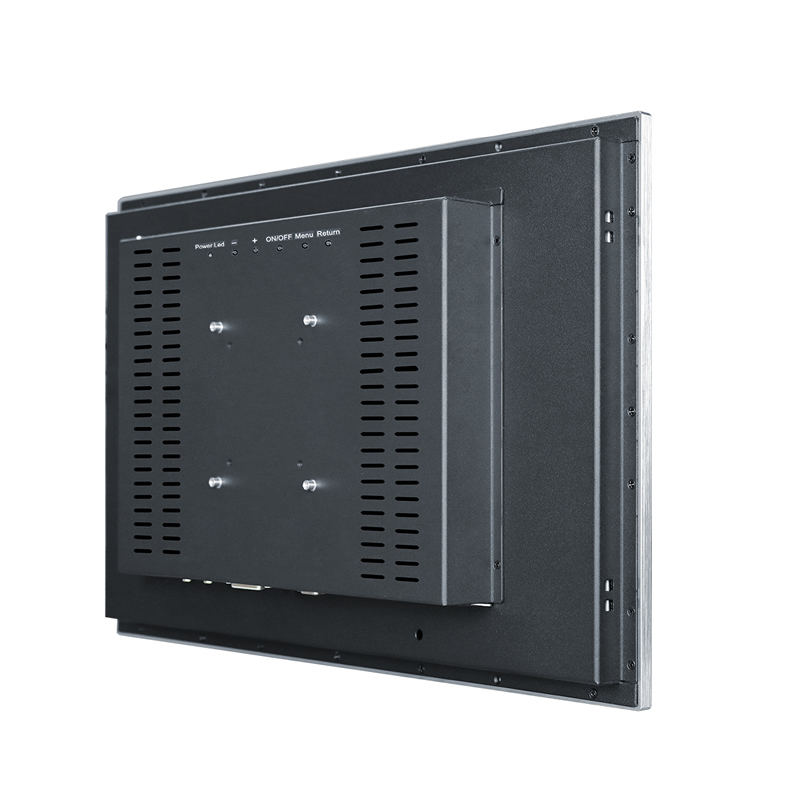

15.6 inch High Brightness Flat Bezel Panel Mount LCD Monitor

BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like resistive, PCAP
- All steel construction designed for harsh and industrial environments
- True flat surface, easy to clean
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- High brightness 1000nits optical bonding optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial panel mount sunlight readable LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. A new design combined with PCAP or resistive touch makes true flat surface, easy to clean. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. Panel Mount High brightness LCD monitors are ideal for system integrators, kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine for indoor, semi-outdoor, outdoor applications.



High Brightness Flat Bezel Panel Mount LCD
Monitor

Model Name

ITD156PMG1HBX2

IP Rating

IP65 Front Panel


LCD Panel

Screen Diagonal (Inch/cm)

15.6¡±

Display Active Screen Size (cm)

344.16(H)¡Á193.59(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

262K

Brightness (cd/m2)

1000

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000Hours¡¯Lifetime


Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V (DC 9-36V optional)

Power Consumption

20W


Order Information

15.6¡±1000nits Panel Mount LCD Monitor with Resistive Touch

ITD156PMT1HBX2

15.6¡±1000nits Panel Mount LCD Monitor with PCAP Touch

ITD156PMT5HBX2

15.6¡±1000nits Panel Mount LCD Monitor with Tempered Glass

ITD156PMG1HBX2
