OVERVIEW
ITD industrial HMI touch panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminum enclosures and highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean. The Industrial HMI panel PCs come with industrial LCD flat screen sizes, PCAP or resistive touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities are ideal for Manufacturing Automation, Process Control Systems, Smart Building Automation, Food and Beverage Industry, Oil and Gas Operations, Renewable Energy Systems, Water and Wastewater Treatment, Pharmaceutical Manufacturing, Packaging Industry, Transportation Systems, Healthcare Automation, Mining and Construction, etc.

Industrial HMI Touch Panel PC
Model Name	ITD156PPCT5B-xxxx
IP Rating	IP65 Front Panel
PC Systems Options

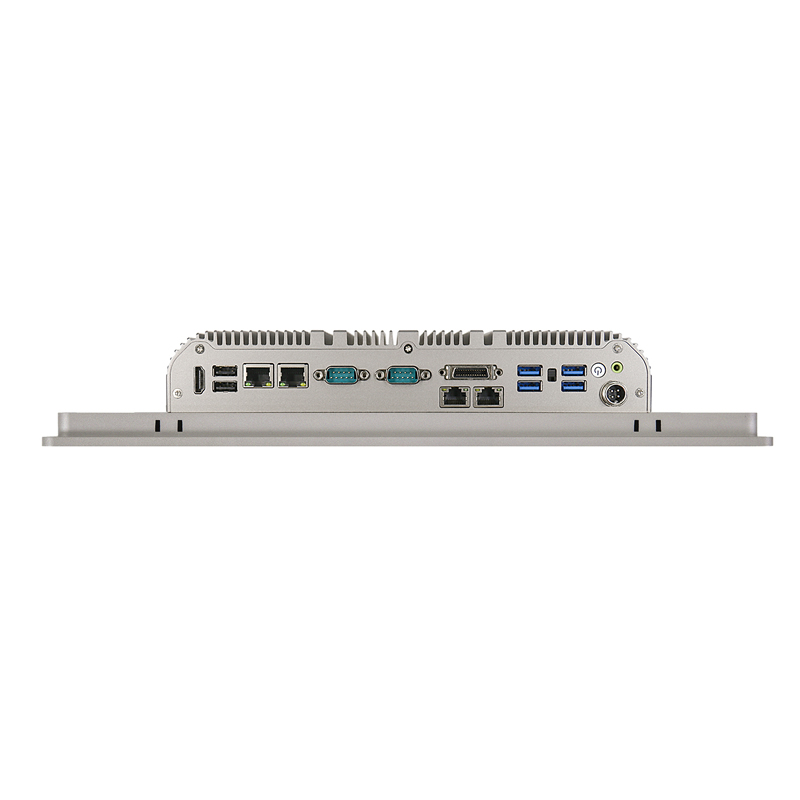

X86 Based CPU: Intel Celeron J4125/J6412 Chipset: Intel Elkhart Lake Memory: DDR4 SODIMM×1 Storage: 1×M.2 2242/2260/2280 SATA,1×SATA(2.5'' SATA ),1×M.2 2280 NVME 2×2.5 GbE RJ45 Intel? i225V (4 x 2.5GbE RJ45 Intel i225V) 4×USB2.01, 2×USB3.0 2×DB-9 COM1&COM2,RS-232/422/485 1×Audio Line-out 2×8Ω 1W Audio AM P out (Optional) 1×AT/ATX switch 1×HDMI Expansion: M.2 3042/3052 with SIM Card for 3G/4G/5G M.2 2230 WiFi/Bluetooth	X86 Based
	CPU: lntel Core 8/10/11th Generation-U i5/i7
	Chipset: Intel SoC
	Memory: DDR4 SODIMM×2
	Storage: 1×M.2 2242/2260/2280 SATA,1×SATA(2.5'' SATA ),1×M.2 2280 NVME
	2×2.5 GbE RJ45 Intel? i225V (4 x 2.5GbE RJ45 Intel i225V) 2×USB2.01, 4×USB3.0
	1×Audio Line-out
	2×8Ω 1W Audio AM P out (Optional)
	1×AT/ATX switch
	1×HDMI
	1×Expansion IO：4x3-wire COM, 1 x10bit GPIO, 1×Remote switch Expansion: M.2 3042/3052 with SIM Card for 3G/4G/5G M.2 2230 WiFi/Bluetooth
LCD Panel
Screen Diagonal (Inch)	15.6”
Display Active Screen Size (cm)	246.0 (H)×184.5(V)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m2)	300nits
Contrast Ratio	700:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options	Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers	Windows 7/8/10/11, Linux, Android, Mac
Operation
Operating Temperature Range	-20~60°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 9-36V with 4PIN M12 Connector
Power Consumption	25W
Order Information
15.6”Industrial HMI PCAP Touch Panel PC with J4125	ITD156PPCT5B-J4125
15.6”Industrial HMI Resistive Touch Panel PC with J4125	ITD156PPCT1B-J4125
15.6”Industrial HMI PCAP Touch Panel PC with J6412	ITD156PPCT5B-J6412
15.6”Industrial HMI Resistive Touch Panel PC with J6412	ITD156PPCT1B-J6412
15.6”Industrial HMI PCAP Touch Panel PC with i5-8260U	ITD156PPCT5B-i5-8260U
15.6”Industrial HMI Resistive Touch Panel PC with i5-8260U	ITD156PPCT1B- i5-8260U
15.6”Industrial HMI PCAP Touch Panel PC with i7-8565U	ITD156PPCT5B-i7-8565U
15.6”Industrial HMI Resistive Touch Panel PC with i7-8565U	ITD156PPCT1B- i7-8565U
15.6”Industrial HMI PCAP Touch Panel PC with i5-10210U	ITD156PPCT5B-i5-10210U
15.6”Industrial HMI Resistive Touch Panel PC with i5-10210U	ITD156PPCT1B- i5-10210U
15.6”Industrial HMI PCAP Touch Panel PC with i7-10510U	ITD156PPCT5B-i7-10510U
15.6”Industrial HMI Resistive Touch Panel PC with i7-10510U	ITD156PPCT1B- i7-10510U
