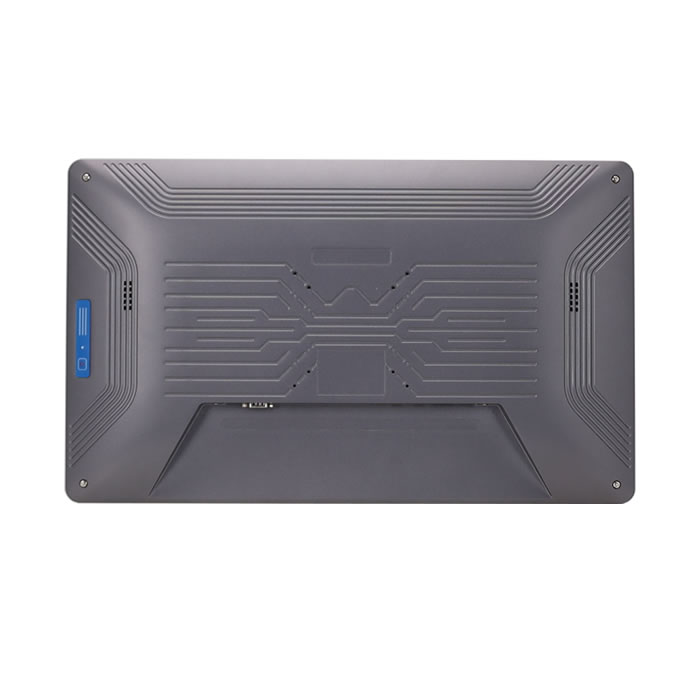

15.6-inch LED Framed Touch Screen PC Panel
BENEFITES
+ Ultra-Thin & Modern Design
  - Sleek, Space-Saving Profile ¨C Ideal for installations where space is limited.
  - LED-Framed Design ¨C Enhances aesthetics while improving visibility and usability.

+ High-Performance Display & Touch Technology
  - 15.6" Zero-Bezel Touch Interface ¨C Seamless, edge-to-edge glass design for a modern look and improved durability.
  - Multi-Touch PCAP Technology ¨C Supports multiple touch points, delivering a smooth and intuitive user experience.
  - Optical Bonding Technology ¨C Reduces internal reflections, enhances brightness, and improves contrast for excellent visibility, even in bright environments.

+ Industrial-Grade Durability & Reliability
  - Die-Cast Aluminum Chassis ¨C Robust yet lightweight, providing excellent heat dissipation and durability.
  - Fanless Design ¨C Ensures silent operation and eliminates mechanical failure risks, making it ideal for harsh industrial environments.
  - IP-Rated Protection ¨C Front panel is dustproof and water-resistant, suitable for demanding industrial settings.

+ Flexible Computing Performance
  - ARM-Based Android Version ¨C Power-efficient solution ideal for kiosks, automation, and embedded systems.
  - Intel N100 Windows Version ¨C High-performance x86-based computing for versatile software compatibility.
  - Rich I/O Interfaces ¨C USB, HDMI, LAN, COM, GPIO, and optional WiFi/4G connectivity.

+ Wide Application Compatibility
  - Industrial Automation & HMI ¨C Reliable performance for factory and process control systems.
  - Self-Service Kiosks & POS ¨C Ideal for interactive customer engagement.
  - Medical & Healthcare Devices ¨C Hygienic and durable for healthcare applications.
  - Retail & Smart Signage ¨C Engaging and durable displays for retail environments.
  - IoT & Smart Home Control ¨C Compact yet powerful for connected devices and automation.
OVERVIEW
The ITD 15.6-inch LED-Framed Touch Screen Panel PC is an advanced, ultra-thin industrial computing solution designed for self-service kiosks, industrial automation, medical equipment, and retail applications. Available in ARM-based Android and Intel N100 Windows configurations, this Panel PC delivers versatile performance, exceptional durability, and a sleek design for modern interactive environments.


LED Framed Touchscreen
 Panel PC

Model Name ITD156PPCT5Kxx-HL
IP Rating IP65 Front Panel

PC Systems Options

ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) Intel? N100
Chipset: Rockchip Chipset: Intel SoC
Memory: 2GB; 4GB/8GB Optional Memory: DDR4 SODIMM¡Á1, Max.16GB
Storage(Emmc): 16GB; 32GB/64GB/128G Optional Storage: 1¡ÁmSATA, 1¡ÁSATA; Default to 64GB SSD
Graphic: Supports max. 4K resolution Graphic: Intel UHD Graphics (By CPU)
1 ¡Á HDMI Output; 2 ¡Á USB; 1 ¡ÁType C; 1 ¡Á COM,
1 ¡Á TF Card Slot; 1 ¡Á Audio IN/OUT
1 ¡Á DC Jack
1 ¡Á HDMI Output; 3 ¡Á USB 3.0; 1 ¡Á Type C
1 ¡Á Audio IN/OUT
1 ¡Á Power Switch, 1 ¡Á DC Jack
LAN: 1¡Á10/100/1000Mbps Ethernet LAN: 1¡Á 10/100/1000Mbps Ethernet
OS: Android 7.1/8/10/11/12, etc OS: Windows 10/11/Linux

LCD Panel

Screen Diagonal (Inch/cm) 15.6¡±
Aspect Ratio 16 : 9
Display Active Screen Size (mm) 344.16(H) ¡Á 193.59(V)mm
Pixel Pitch(mm) 0.17925 ¡Á 0.17925mm
Physical Resolution 1920¡Á1080
Maximum Resolution Supported 1920¡Á1200
Colors  16.7M
Response Time 30ms
Brightness (cd/m2) 300nits
Contrast Ratio 800:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 30000 Hours¡¯ Lifetime

Touch Panel

Touch Technology Projected Capacitive Touch
Touch Drivers Plug and Play
Touch Life 50,000,000 Times/Click
Surface Hardness 7H
OS Support Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -10~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 12V
Power Consumption 15~25W

Order
 Information

15.6¡± Zero Bezel Panel PC with PCAP Touch Android RK3288 ITD156PPCT5KE1-HL
15.6¡± Zero Bezel Panel PC with Tempered Glass No Touch Android RK3288 ITD156PPCG1KE1-HL
15.6¡± Zero Bezel Panel PC with PCAP Touch Android RK3399 ITD156PPCT5KE2-HL
15.6¡± Zero Bezel Panel PC with Tempered Glass No Touch Android RK3399 ITD156PPCG1KE2-HL
15.6¡± Zero Bezel Panel PC with PCAP Touch Android RK3568 ITD156PPCT5KE3-HL
15.6¡± Zero Bezel Panel PC with Tempered Glass No Touch Android RK3568 ITD156PPCG1KE3-HL
15.6¡± Zero Bezel Panel PC with PCAP Touch Android RK3588 ITD156PPCT5KE4-HL
15.6¡± Zero Bezel Panel PC with Tempered Glass No Touch Android RK3588 ITD156PPCG1KE4-HL
15.6¡± Zero Bezel Panel PC with PCAP Touch Windows N100 ITD156PPCT5KN1-HL
15.6¡± Zero Bezel Panel PC with Tempered Glass No Touch Windows N100 ITD156PPCT1KN1-HL
