15.6 inch Multi Touch PCAP Panel PC with RFID/NFC
BENEFITES
- Exceptional quality and highly engineered industrial/commercial panel computer
- High Performance Processor, Graphics, Memory and Power
- RFID/NFC reader, web camera, microphone built-in
- Edge to edge design with true flat surface, easy to clean without bezels
- Ten independent touch points, plug and play
- All steel construction designed for industrial or public environments
- Easy-to-install VESA mounting with brackets
- Robust design with aluminum frame NEMA 4/ IP65 front panel
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD Zero-Bezel PCAP touch panel PCs come with built-in card readers like NFC, RFID and IC card. The fanless design decreases downtime and reduces the need for on-site support due to cooling system failure. The multi-touch display allows for configuration and notifications while RFID/NFC reader and camera act as the access control method. The system meets MIL-STD 810F testing procedures and the IP65 compliant front panel is sealed against water and dust intrusion. The built-in RFID/NFC reader works with EM and MIFARE cards and tags. The intuitive touch panel allows for easy operation and the built-in webcam can be used as an intercom through the LAN connection or as a biometric access control system based on facial and voice recognition. The integrated card reader makes the series a complete access control and security system for commercial, residential, industrial, financial, and educational and government institutions.



Multi Touch PCAP Panel PC with RFID/NFC

Model Name

ITD156PPCT5K**-RFID/NFC

IP Rating

IP65 Front Panel


PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD: Default to?16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD		 Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD

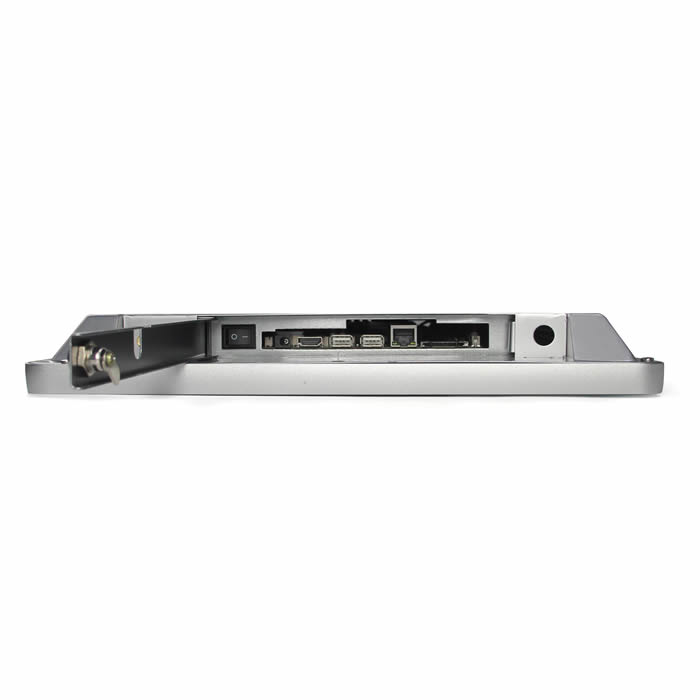

1¡ÁHDMI Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)		 Windows 7/10, Linux
Windows 11(available for 7th gen. or above)


LCD Panel

Screen Diagonal (Inch/cm)

15.6¡±

Display Active Screen Size (mm)

246.0 (H) ¡Á184.5(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

300nits

Contrast Ratio

700:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Technology

Projected Capacitive Touch

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Touch Life

50,000,000 Times/Click

Surface Hardness

7H

OS Support

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

18W


Order Information



15.6¡±PCAP Touch Panel PC with J1900, RFID

ITD156PPCT5KJ1-RFID

15.6¡± PCAP Touch Panel PC with Android RK3368, RFID

15.6¡±PCAP Touch Panel PC with Android RK3399, RFID

ITD156PPCT5KE1-RFID

ITD156PPCT5KE2-RFID

15.6¡±PCAP Touch Panel PC with i3, RFID

ITD156PPCT5KI3-RFID

15.6¡± PCAP Touch Panel PC with i5, RFID

15.6¡±PCAP Touch Panel PC with i7, RFID

ITD156PPCT5KI5-RFID

ITD156PPCT5KI7-RFID

15.6¡±PCAP Touch Panel PC with J1900, NFC

ITD156PPCT5KJ1-NFC

15.6¡± PCAP Touch Panel PC with Android RK3368, NFC

15.6¡±PCAP Touch Panel PC with Android RK3399, NFC

ITD156PPCT5KE1-NFC

ITD156PPCT5KE2-NFC

15.6¡±PCAP Touch Panel PC with i3, NFC

ITD156PPCT5KI3-NFC

15.6¡± PCAP Touch Panel PC with i5, NFC

15.6¡±PCAP Touch Panel PC with i7, NFC

ITD156PPCT5KI5-NFC

ITD156PPCT5KI7-NFC
