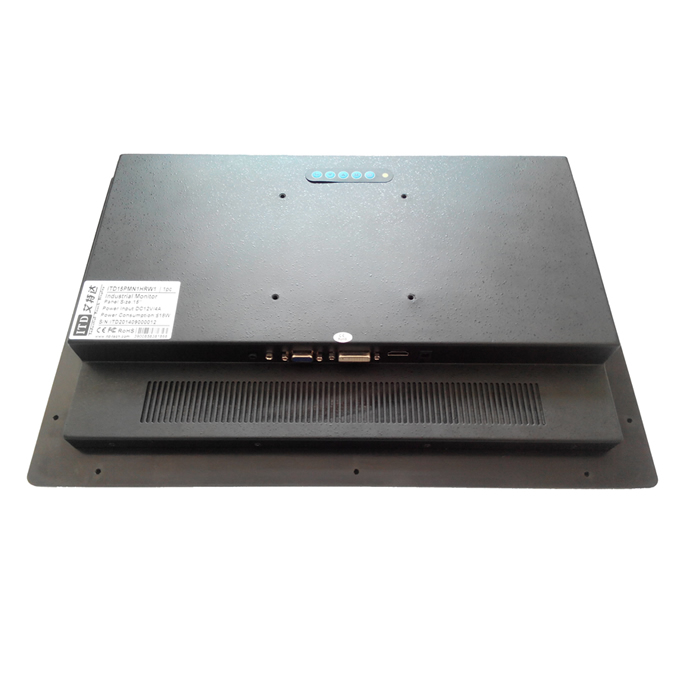

15.6 inch Panel Mount High Bright Sunlight Readable LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mountsunlight readable LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 6mm thickness and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments.Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. Industrial panel mountmonitors come with high brightness LCD flat screen sizes, touchscreen interface, industrial analog & digital driver board, low power consumption, and scratch-resistant capabilitiesare idealfor system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marinefor indoor, semi-outdoor, outdoor applications.




Panel Mount High Brightness LCD
Monitor

Model Name

ITD156PMN1HB02

IP Rating

IP65 Front Panel


LCD Panel

Screen Diagonal (Inch/cm)

15.6¡±

Display Active Screen Size (mm)

344.16 (H) ¡Á193.59(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

500:1

View Angels

80/80/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

18W


Order Information

15.6¡±1000nits Panel Mount LCD Monitor with Resistive Touch

ITD156PMT1HB02

15.6¡±1000nits Panel Mount LCD Monitor with IR Touch

ITD156PMT2HB02

15.6¡±1000nits Panel Mount LCD Monitor with SAW Touch

ITD156PMT3HB02

15.6¡±1000nits Panel Mount LCD Monitor with PCAP Touch

ITD156PMT5HB02

15.6¡±1000nits Panel Mount LCD Monitor with Tempered Glass

ITD156PMG1HB02

15.6¡±1500nits Panel Mount LCD Monitor with Resistive Touch

ITD156PMT1HB01

15.6¡±1500nits Panel Mount LCD Monitor with IR Touch

ITD156PMT2HB01

15.6¡±1500nits Panel Mount LCD Monitor with SAW Touch

ITD156PMT3HB01

15.6¡±1500nits Panel Mount LCD Monitor with PCAP Touch

ITD156PMT5HB01

15.6¡±1500nits Panel Mount LCD Monitor with Tempered Glass

ITD156PMG1HB01
