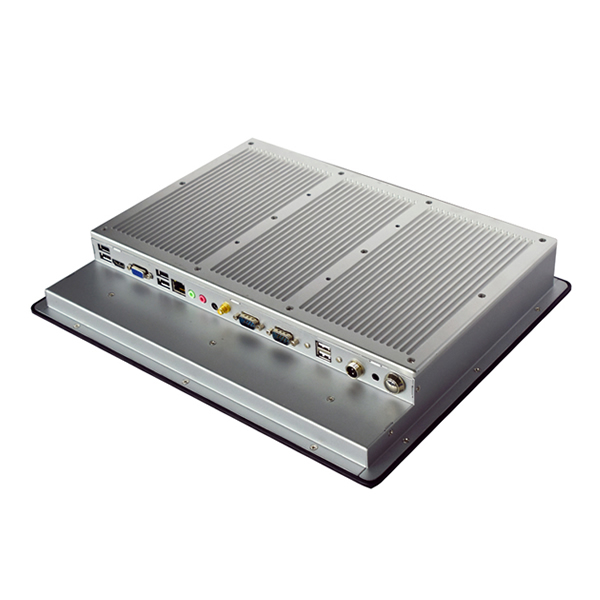

17 inch Panel Mount High Bright Sunlight Readable Panel PC
BENEFITES
-
Exceptional quality and highly engineered Sunlight Readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Optional touchscreens like resistive, PCAP, IR, SAW
- All steel construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial sunlight readable panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 6mm and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. Industrial panel mount panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor, outdoor applications.




High Brightness Panel Mount Panel PC

Model Name

ITD17PPCG1HB**

IP Rating

IP65 Front Panel


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel HD Graphics, Support 1080p

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch/cm)

17¡±

Display Active Screen Size (mm)

337.920(H)X270.336(V)

Aspect Ratio

4:3

Physical Resolution

1024X768

Maximum Resolution Supported

1920X1080

Colors

16.7M

Brightness (cd/m2)

1000(1500 Optional)

Contrast Ratio

800:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

45W


Order Information



17¡±1000nits Panel Mount Panel PC with Resistive Touch, J1900

ITD17PPCT1HBJ1

17¡±1000nits Panel Mount Panel PC with PCAP Touch, J1900

ITD17PPCT5HBJ1

17¡±1000nits Panel Mount Panel PC with IR Touch, J1900

ITD17PPCT2HBJ1

17¡±1000nits Panel Mount Panel PC with Tempered Glass, J1900

ITD17PPCG1HBJ1

17¡±1000nits Panel Mount Panel PC with Resistive Touch, i5

ITD17PPCT1HBI5

17¡±1000nits Panel Mount Panel PC with PCAP Touch, i5

ITD17PPCT5HBI5

17¡±1000nits Panel Mount Panel PC with IR Touch, i5

ITD17PPCT2HBI5

17¡±1000nits Panel Mount Panel PC with Tempered Glass, i5

ITD17PPCG1HBI5
