18.5 inch Flat Bezel Panel Mount Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean
- Optional touchscreens like resistive, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.



Flat Bezel Industrial Panel PC

Model Name ITD18PPCG1X**
IP Rating IP65 Front Panel

PC Systems Options
ARM Android Based RK3288(RK3399 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/6412 CPU: Intel Core i3/i5/i7 4th~11th Generation
Chipset: Rockchip Chipset: Intel Bay Trail SOC Chipset: Intel SoC
  Graphic: Intel HD Graphics (By CPU) Chipset: Intel HD Graphics (By CPU)
Memory: 2G Max. 8GB Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1 Memory: 4GB, Max. 32GB; DDR4 SODIMM x2
HDD/SSD: 8G Max. 64GB Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD

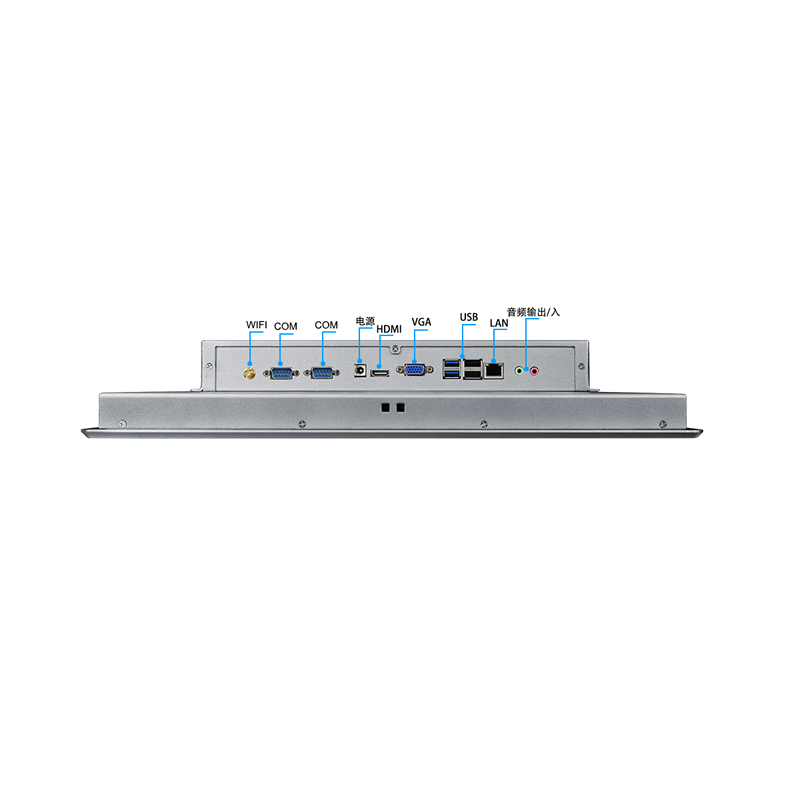

1¡ÁHDMI Output 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
1¡ÁUSB 2.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡ÁTF Slot 2¡ÁCOM(RS232/422/485) 1¡ÁCOM(RS232/422/485)
1¡ÁLAN 1¡ÁLAN (Dual LAN optional) 1¡ÁLAN (Dual LAN optional)
1¡ÁAudio Output 1¡ÁAudio Out, 1¡ÁMIC In 1¡ÁAudio Out, 1¡ÁMIC In
1¡ÁCOM Expansion: USB, COM, Mini-PCIe, etc. Expansion: USB, COM, Mini-PCIe, etc.
OS Support: Android 7.1/8/9/10/11 OS Support: Windows 7/10/11, Linux OS Support: Windows 7/10/11, Linux

LCD Panel
Screen Diagonal (Inch) 18.5¡±
Display Active Screen Size (cm) 409.8 (H)¡Á230.4(V)
Aspect Ratio 16:9
Physical Resolution 1366¡Á768
Maximum Resolution Supported 1920¡Á1080
Colors 16.7M
Brightness (cd/m2) 250nits
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel
Touch Options Resistive, PCAP,
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -10~60¡ãC (-20~70¡ãC Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power
Power Indicator Green LED
Power Input DC 12V
Power Consumption 18W

Order Information
18.5¡±Panel Mount Panel PC with Resistive Touch, Android RK3288 ITD18PPCT1XE1
18.5¡±Panel Mount Panel PC with PCAP Touch, Andrord RK3288 ITD18PPCT5XE1
18.5¡±Panel Mount Panel PC with Tempered Glass, Android RK3288 ITD18PPCG1XE1
18.5¡±Panel Mount Panel PC with Resistive Touch, J1900 ITD18PPCT1XJ1
18.5¡±Panel Mount Panel PC with PCAP Touch, J1900 ITD18PPCT5XJ1
18.5¡±Panel Mount Panel PC with Tempered Glass, J1900 ITD18PPCG1XJ1
18.5¡±Panel Mount Panel PC with Resistive Touch, i3 ITD18PPCT1XI3
18.5¡±Panel Mount Panel PC with PCAP Touch, i3 ITD18PPCT5XI3
18.5¡±Panel Mount Panel PC with Tempered Glass, i3 ITD18PPCG1XI3
18.5¡±Panel Mount Panel PC with Resistive Touch, i5 ITD18PPCT1XI5
18.5¡±Panel Mount Panel PC with PCAP Touch, i5 ITD18PPCT5XI5
18.5¡±Panel Mount Panel PC with Tempered Glass, i5 ITD18PPCG1XI5
18.5¡±Panel Mount Panel PC with Resistive Touch, i7 ITD18PPCT1XI7
18.5¡±Panel Mount Panel PC with PCAP Touch, J1900 i7 ITD18PPCT5XI7
18.5¡±Panel Mount Panel PC with Tempered Glass, J1900 i7 ITD18PPCG1XI7
