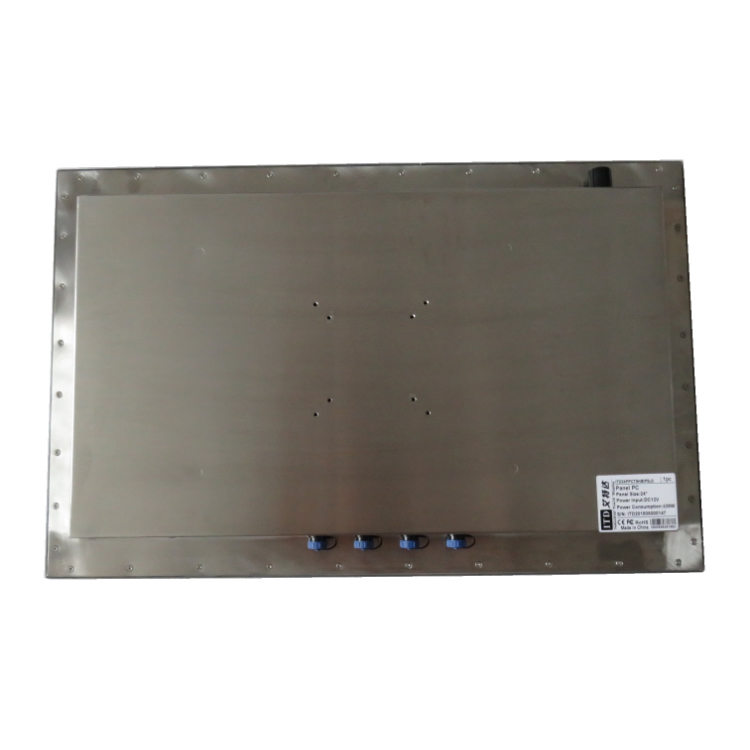

18.5 inch High Brightness Full IP66 Rugged Stainless Steel Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65, IP66 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- IP66 sealed, Full IP66 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive and PCAP
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP66 sunlight readable touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP66 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD sunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.



High Brightness Full IP65/IP66 Panel PC

Model Name ITD18PPCG1IPHB**
IP Rating IP65/IP66(IP67 optional)


PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD: Default to 16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD
Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD
1¡ÁHDMI Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)
Windows 7/10, Linux
Windows 11(available for 7th gen. or above)

Default Waterproof Connectors:  2¡ÁUSB 2.0, 1¡ÁLAN, 1¡ÁDC


LCD Panel

Screen Diagonal (Inch/cm) 18.5¡±
Display Active Screen Size (mm) 409.8(H) ¡Á230.4(V)
Aspect Ratio 4:3
Physical Resolution 1866¡Á768
Maximum Resolution Supported 1920¡Á1080
Colors 16.7M
Brightness (cd/m2) 1000 cd/m2
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options Resistive, PCAP, Infrared
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range -10~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported


Power

Power Indicator Green LED
Power Input DC 12V (DC9-36V optional)
Power Consumption 30W


Order Information

18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, Android ITD18PPCT1IPHBSE2
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, Android ITD18PPCT5IPHBSE2
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, Android ITD18PPCG1IPHBSE2
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900 ITD18PPCT1IPHBSJ2
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900 ITD18PPCT5IPHBSJ2
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900 ITD18PPCG1IPHBSJ2
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3 ITD18PPCT1IPHBSI3
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3 ITD18PPCT5IPHBSI3
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3 ITD18PPCG1IPHBSI3
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i5 ITD18PPCT1IPHBSI5
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i5 ITD18PPCT5IPHBSI5
18.5¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i5 ITD18PPCG1IPHBSI5
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, Android ITD18PPCT1IPHBAE2
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, Android ITD18PPCT5IPHBAE2
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, Android ITD18PPCG1IPHBAE2
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, J1900 ITD18PPCT1IPHBAJ2
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, J1900 ITD18PPCT5IPHBAJ2
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, J1900 ITD18PPCG1IPHBAJ2
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i3 ITD18PPCT1IPHBAI3
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i3 ITD18PPCT5IPHBAI3
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i5 ITD18PPCT1IPHBAI5
18.5¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i5 ITD18PPCT5IPHBAI5
