OVERVIEW
ITD industrial panel mount LCD monitors are engineered to provide reliable, long-lasting operation in demanding industrial environments. Built with a reinforced steel chassis and a robust aluminum front bezel, these displays are designed to withstand vibration, impact, and other stresses commonly encountered in factories, plants, and industrial settings. The IP65/NEMA 4-rated front panel, combined with high-strength tempered glass, offers excellent protection against dust, water, and industrial contaminants, ensuring the displays remain fully functional in harsh conditions. The modern mechanical design supports both resistive and PCAP touch technologies, creating a smooth, flat front surface that is easy to clean—ideal for applications with frequent user interaction or strict hygiene requirements. For seamless integration, ITD panel mount displays provide VGA and HDMI input options, support a variety of DC power inputs, and offer flexible mounting methods, including panel, wall, desktop, and VESA arm configurations. The extended product lifecycle ensures long-term supply stability, reducing the need for system redesign and helping customers maintain continuity across all phases of their projects.
These industrial-grade monitors are well suited for a wide range of applications, such as industrial automation systems, human-machine interfaces (HMI), machinery control, kiosks, food and beverage processing, transportation systems, in-vehicle solutions, and marine environments, providing both reliability and performance in critical operations.

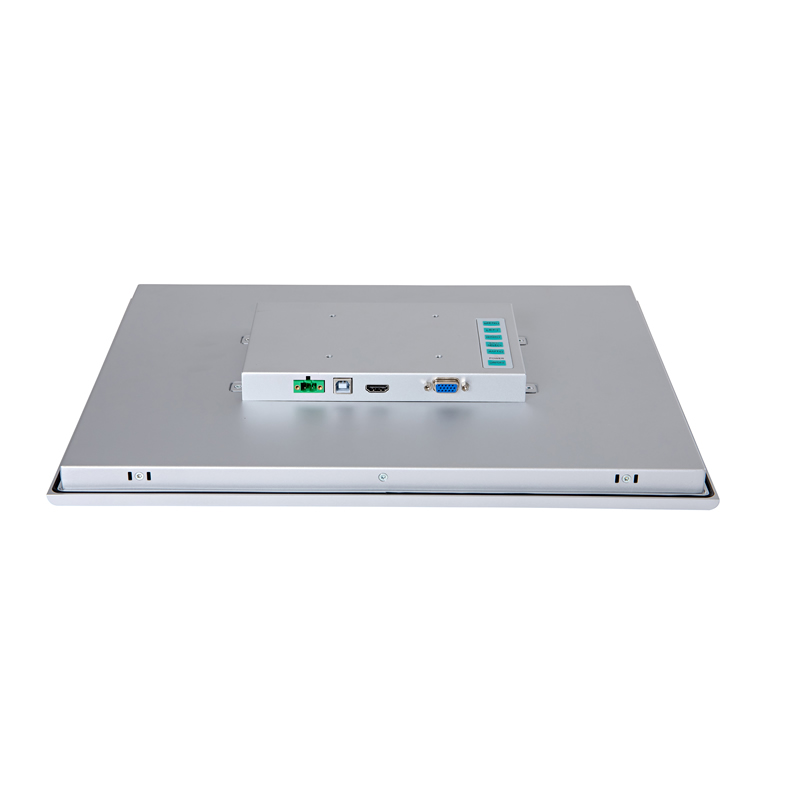

Panel Mount Touch Screen Monitor
Model Name	ITD18PMT5X1_V2
IP Rating	IP65 Front Panel
LCD Panel
Screen Diagonal (Inch)	18.5”
Display Active Screen Size (mm)	408.96(W)×230.04(H)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Pixel Pitch(mm)	0.213×0.213
Colors	16.7M
Response Time	14ms
Brightness (cd/m2)	350 (500~1500 optional)
Contrast Ratio	1000:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options	PCAP, Resistive
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I, 1 × Display Port(optional)
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × Phoenix Connector
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC9~28V input
Power Consumption	20W
Order Information
18.5”Panel Mount LCD Monitor with Resistive Touch	ITD18PMT1X1_V2
18.5”Panel Mount LCD Monitor with PCAP Touch	ITD18PMT5X1_V2
18.5”Panel Mount LCD Monitor with Tempered Glass	ITD18PMG1X1_V2
18.5”1000nits Panel Mount LCD Monitor with Resistive Touch	ITD18PMT1HBX2_V2
18.5”1000nits Panel Mount LCD Monitor with PCAP Touch	ITD18PMT5HBX2_V2
18.5”1000nits Panel Mount LCD Monitor with Tempered Glass	ITD18PMG1HBX2_V2
18.5”1500nits Panel Mount LCD Monitor with Resistive Touch	ITD18PMT1HBX1_V2
18.5”1500nits Panel Mount LCD Monitor with PCAP Touch	ITD18PMT5HBX1_V2
18.5”1500nits Panel Mount LCD Monitor with Tempered Glass	ITD18PMG1HBX1_V2
