OVERVIEW
ITD Zero-Bezel PCAP touch panel PCs come with projected capacitive touch panel, edge to edge design without bezels that eliminates dust and debris build-up at the edge and corners of the display. The rugged steel chassis with robust aluminum frame and highly-durable glass front surface provide the durability needed for demanding pubic/industrial environments. The PCAP touch panel is combined with projected capacitive touch makes true flat surface with easy to clean and come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for public information, digital poster, digital signage, kiosk, home automation, building automation, access automation and custom HMI applications.

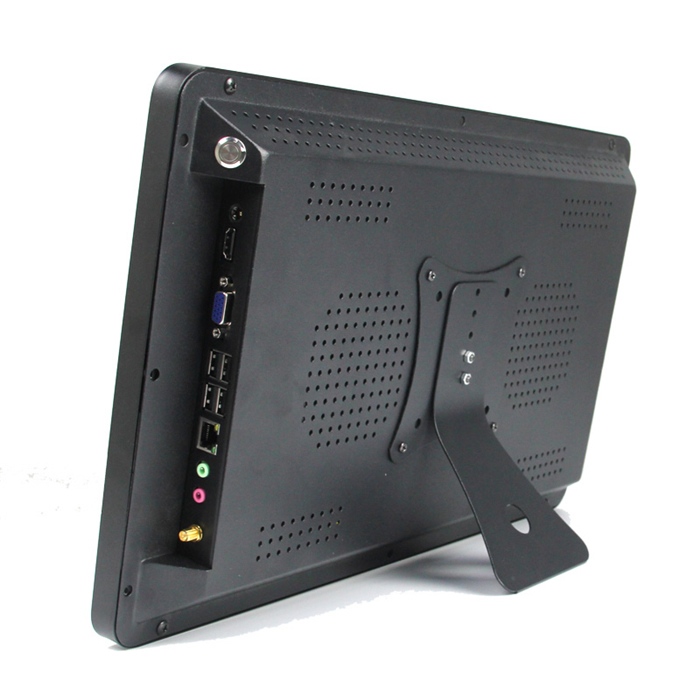

Zero-Bezel PCAP Touch Panel PC
Model Name		ITD18PPCG1K**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3399 optional) X86 Based X86 Based CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/6412 CPU: Intel Core i3/i5/i7 4th~11th Generation Chipset: Rockchip Chipset: Intel Bay Trail SOC Chipset: Intel SoC Graphic: Intel HD Graphics (By CPU) Chipset: Intel HD Graphics (By CPU) Memory: 2G Max. 8GB Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1 Memory: 4GB, Max. 32GB; DDR4 SODIMM x2 HDD/SSD: 8G Max. 64GB Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD 1×HDMI Output 1×VGA, 1×HDMI 1×VGA, 1×HDMI 1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0 1×TF Slot 2×COM(RS232/422/485) 1×COM(RS232/422/485) 1×LAN 1×LAN (Dual LAN optional) 1×LAN (Dual LAN optional) 1×Audio Output 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In 1×COM Expansion: USB, COM, Mini-PCIe, etc. Expansion: USB, COM, Mini-PCIe, etc. OS Support: Android 7.1/8/9/10/11 OS Support: Windows 7/10/11, Linux OS Support: Windows 7/10/11, Linux
LCD Panel
Screen Diagonal (Inch/cm)		18.5”
Display Active Screen Size (mm)		409.8 (H) ×230.4(V)
Aspect Ratio		16:9
Physical Resolution		1366×768
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m2)		250nits
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Technology		Projected Capacitive Touch
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Touch Life		50,000,000 Times/Click
Surface Hardness		7H
OS Support		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		18W
Order Information
18” Zero-Bezel Touch Panel PC with PCAP Touch, J1900		ITD18PPCT5KJ1
18” Zero-Bezel Touch Panel PC with Tempered Glass, J1900		ITD18PPCG1KJ1
18” Zero-Bezel Touch Panel PC with PCAP Touch, i3		ITD18PPCT5KI3
18” Zero-Bezel Touch Panel PC with Tempered Glass, i3		ITD18PPCG1KI3
18” Zero-Bezel Touch Panel PC with PCAP Touch, i5		ITD18PPCT5KI5
18” Zero-Bezel Touch Panel PC with Tempered Glass, i5		ITD18PPCG1KI5
18” Zero-Bezel Touch Panel PC with PCAP Touch, i7		ITD18PPCT5KI7
18” Zero-Bezel Touch Panel PC with Tempered Glass, i7		ITD18PPCG1KI7
