BENEFITES
- Combination of touchscreens and physical buttons provides a more intuitive and user-friendly interface.
- Dedicated buttons allow quick access to frequently used functions, reducing the time required to perform specific tasks.
- Enhances operational efficiency by combining the speed and versatility of touch inputs with the precision of physical buttons.
- Incorporates safety features such as emergency stop buttons or other critical controls to ensure a prompt and reliable response in urgent situations.
- Designed to withstand harsh industrial conditions, rugged and durable, suitable for deployment in challenging environments.
- Many buttons-integrated offer customization options, allowing users to tailor the interface to meet specific industry requirements.
- The rugged design and durability contribute to reduced maintenance requirements.
- Robust design with aluminum alloy NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project

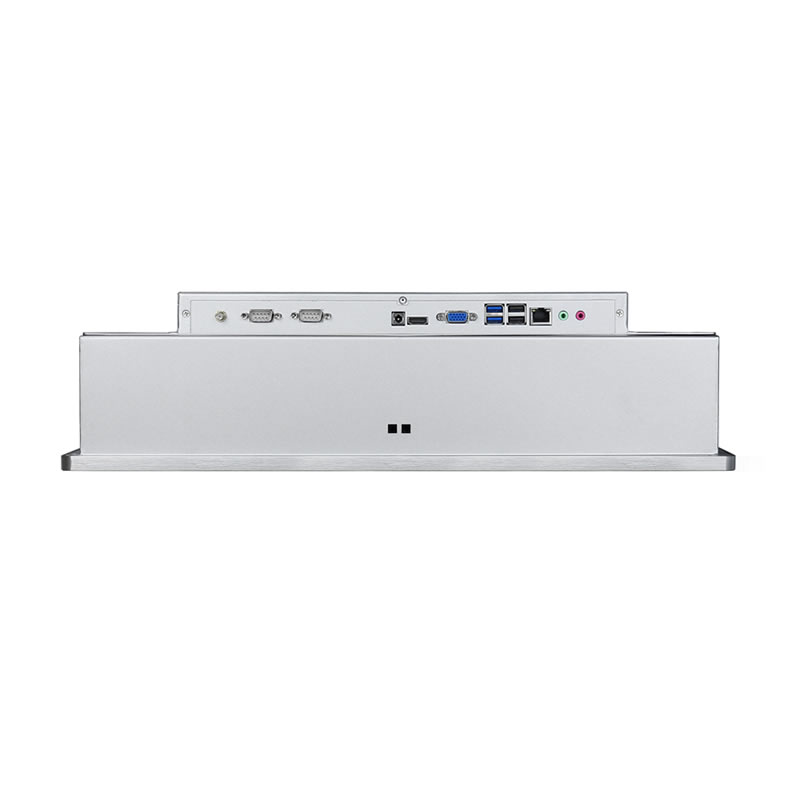

Buttons-Integrated Operation HMI Panel PC |
||||||||||||||||||||||||||||||||||||||
| Model Name | ITD19PPCT*O** | |||||||||||||||||||||||||||||||||||||
| IP Rating | IP65 Front Panel | |||||||||||||||||||||||||||||||||||||
PC Systems Options |
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
Standard Buttons on Front |
||||||||||||||||||||||||||||||||||||||
| Power Switch | ¡Á1¡± | |||||||||||||||||||||||||||||||||||||
| USB | ¡Á1 | |||||||||||||||||||||||||||||||||||||
| Emergency Stop Rotary Switch | ¡Á1 | |||||||||||||||||||||||||||||||||||||
| Emergency Stop Reset Switch | ¡Á2 | |||||||||||||||||||||||||||||||||||||
| Emergency Stop Self-Locking Switch | ¡Á1 | |||||||||||||||||||||||||||||||||||||
LCD Panel |
||||||||||||||||||||||||||||||||||||||
| Screen Diagonal (Inch) | 19¡± | |||||||||||||||||||||||||||||||||||||
| Display Active Screen Size (cm) | 376.3(H)¡Á301.1(V) | |||||||||||||||||||||||||||||||||||||
| Aspect Ratio | 5:4 | |||||||||||||||||||||||||||||||||||||
| Physical Resolution | 1280¡Á1024 | |||||||||||||||||||||||||||||||||||||
| Maximum Resolution Supported | 1920¡Á1080 | |||||||||||||||||||||||||||||||||||||
| Colors | 16.7M | |||||||||||||||||||||||||||||||||||||
| Brightness (cd/m2) | 250(500, 1000, 1500 optional) | |||||||||||||||||||||||||||||||||||||
| Contrast Ratio | 1000:1 | |||||||||||||||||||||||||||||||||||||
| View Angels | 85/85/80/80 | |||||||||||||||||||||||||||||||||||||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | |||||||||||||||||||||||||||||||||||||
Touch Panel |
||||||||||||||||||||||||||||||||||||||
| Touch Options | Resistive, PCAP | |||||||||||||||||||||||||||||||||||||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | |||||||||||||||||||||||||||||||||||||
Operation |
||||||||||||||||||||||||||||||||||||||
| Operating Temperature Range | -10~60¡ãC (-20~70¡ãC Optional) | |||||||||||||||||||||||||||||||||||||
| Humidity Range (RH) | 10-90% | |||||||||||||||||||||||||||||||||||||
| 24/7/365 Use | Supported | |||||||||||||||||||||||||||||||||||||
Power |
||||||||||||||||||||||||||||||||||||||
| Power Indicator | Green LED | |||||||||||||||||||||||||||||||||||||
| Power Input | DC 12V | |||||||||||||||||||||||||||||||||||||
| Power Consumption | 32.5W | |||||||||||||||||||||||||||||||||||||
Order Information |
||||||||||||||||||||||||||||||||||||||
| 19¡± Integrated Buttons Panel PC with PCAP Touch RK3288 19¡± Integrated Buttons Panel PC with Resistive Touch RK3288 19¡± Integrated Buttons Panel PC with PCAP Touch RK3568 19¡± Integrated Buttons Panel PC with Resistive Touch RK3568 19¡± Integrated Buttons Panel PC with PCAP Touch J1900 19¡± Integrated Buttons Panel PC with Resistive Touch J1900 19¡± Integrated Buttons Panel PC with Resistive Touch J4125 19¡± Integrated Buttons Panel PC with Resistive Touch J4125 19¡± Integrated Buttons Panel PC with Resistive Touch J6412 19¡± Integrated Buttons Panel PC with Resistive Touch J6412 19¡± Integrated Buttons Panel PC with PCAP Touch i3 19¡± Integrated Buttons Panel PC with Resistive Touch i3 19¡± Integrated Buttons Panel PC with PCAP Touch i5 19¡± Integrated Buttons Panel PC with Resistive Touch i5 19¡± Integrated Buttons Panel PC with PCAP Touch i7 19¡± Integrated Buttons Panel PC with Resistive Touch i7 |
ITD19PPCT5OE1 ITD19PPCT1OE1 ITD19PPCT5OE3 ITD19PPCT1OE3 ITD19PPCT5OJ1 ITD19PPCT1OJ1 ITD19PPCT1OJ4 ITD19PPCT1OJ4 ITD19PPCT1OJ6 ITD19PPCT1OJ6 ITD19PPCT5OI3 ITD19PPCT1OI3 ITD19PPCT5OI5 ITD19PPCT1OI5 ITD19PPCT5OI7 ITD19PPCT1OI7 |
|||||||||||||||||||||||||||||||||||||
