Products > Sunlight Readable LCD > High Bright Sunlight Readable LCD Monitor Chassis Closed Frame  >  19 inch Chassis High Bright Sunlight Readable LCD Monitor

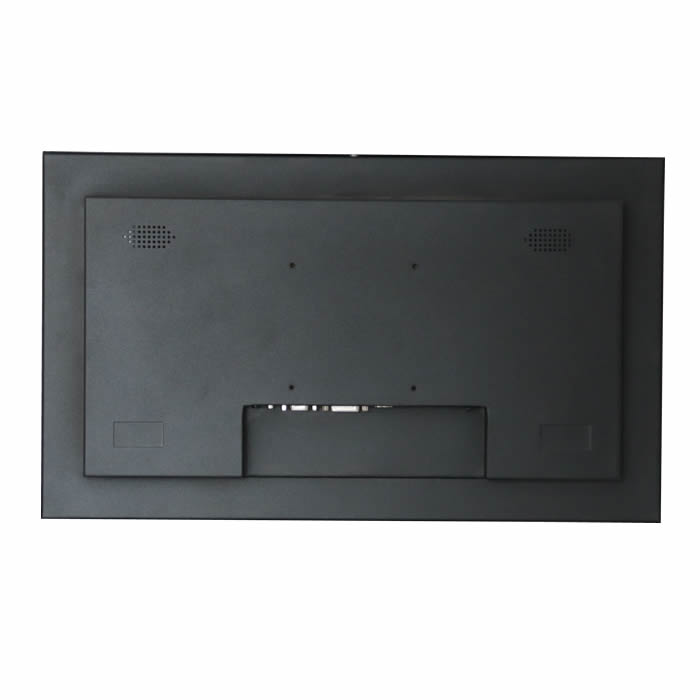

19 inch Chassis High Bright Sunlight Readable LCD Monitor
BENEFITES
- Exceptional quality and highly engineered sunlight readable LCD monitors
- Optional touchscreens like resistive, IR, SAW, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and chassis VESA-mount display
- High brightness from 1000nits to 1500nits optical bonding optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis sunlight readable LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial/commercial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. High brightness chassis LCD monitors are ideal for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminals and industrial machinery builder for indoor, semi-outdoor or outdoor applications. ITD full-range selection is provided in screen sizes from 6.5~84.



Chassis High Brightness LCD Monitor

Model Name

ITD19CMN1HB02W

IP Rating

IP65 Front Optional


LCD Panel

Screen Diagonal (Inch/cm)

19

Display Active Screen Size (mm)

408.24(H) 255.15V)

Aspect Ratio

16:10

Physical Resolution

1440900

Maximum Resolution Supported

19201200

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

30W


Order Information

19 16:10 1000nits Chassis LCD Monitor with Resistive Touch

ITD19CMT1HB02W

19 16:10 1000nits Chassis LCD Monitor with IR Touch

ITD19CMT2HB02W

19 16:10 1000nits Chassis LCD Monitor with SAW Touch

ITD19CMT3HB02W

19 16:10 1000nits Chassis LCD Monitor with PCAP Touch

ITD19CMT5HB02W

19 16:10 1000nits Chassis LCD Monitor with Tempered Glass

ITD19CMG1HB02W
