Products > Industrial Touchscreen LCD > Flush Rear Mount PCAP Monitors  >  19 inch Flush Mount PCAP Touch Monitor

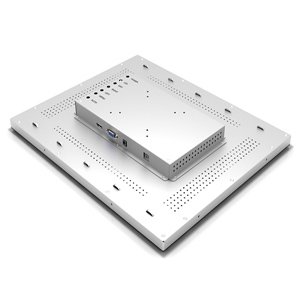

19 inch Flush Mount PCAP Touch Monitor
BENEFITES
-All steel/aluminum construction provides rugged frame for public use environments
-SpecialFLANGE design around easy-to-install to make total true flat front surface
-Ten independent touch points, plug and play
-Eliminates dust and debris build-up at the edge and corners of the display
-Provides improved power efficiency and reduced consumption
-Responds to a light touch in activating response
-Easy-to-clean surface without bezels
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITDs flush mount projected capacitive touch displays are engineered specifically for industrial customers who are looking for a rugged and durable touch screen without having to sacrifice on image quality. Featuring a special FLANGE around withzero bezel design, the touchscreen monitor can easily be wiped clean, thereby eliminating having to worry about dust and dirt collection, and easily make a true flat front surface of console, which helps extend the use of your display. ITD industrial multi touch displays are accurate, responsive and easy-to-use, enabling migration of existing single touch applications to a gesture-based interface that creates and delivers popular user interactions such as pan, zoom and rotate, which ideal for kiosks, gaming, banking and all kinds of self-service terminals.


Flush Mount
PCAP Touchscreen Monitor

Model Name

ITD19OFT5Y1

IP Rating

IP65 Front Panel


LCD Panel

Screen Diagonal (Inch)

19

Display Active Screen Size (cm)

376.3(H)301.1(V)

Aspect Ratio

5:4

Physical Resolution

12801024

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

250

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000HoursLifetime


Touch Panel



Touch Technology

Projected Capacitive Touch

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Touch Life

50,000,000times/click

Surface Hardness

7H


Input / Output



Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

32.5W


Optional



Side Mounting Brackets
