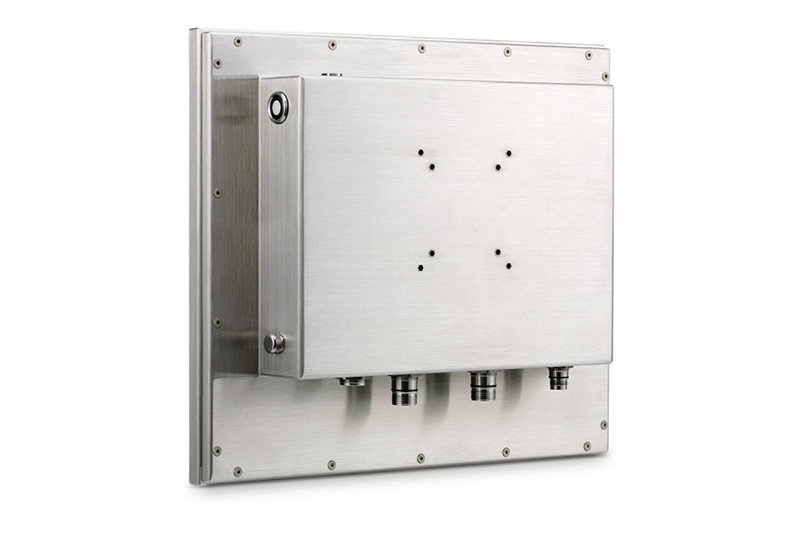

19 inch IP69K Stainless Touchscreen LCD Monitor

Products > Rugged IP66/IP67/IP69K Stainless Displays > IP69K Touchscreen Monitor > 19 inch IP69K Stainless Touchscreen LCD Monitor

BENEFITES
- Comply with industry standards and regulations related to safety, hygiene, and performance, providing peace of mind to businesses operating in regulated industries such as food processing, pharmaceuticals, and manufacturing.
- Built to withstand shock, vibration, temperature fluctuations, and other challenges commonly encountered in industrial settings, minimizing the risk of downtime or equipment failure.
- The touchscreen interface allows for intuitive and efficient operation, enabling operators to quickly navigate menus, input data, and control processes without the need for external input devices.
- Easy integration into existing industrial systems and equipment, thanks to the versatile mounting options and compatibility with standard interfaces.
- M12 Waterproof I/O connectors protected from any particles, water, and corrosive agents.
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD’s IP69K Touchscreen Monitors feature a rugged design and sealed construction, offering unparalleled reliability even in the most demanding conditions. Its intuitive touch interface allows for seamless operation, facilitating efficient workflow and enhancing productivity on the factory floor. With a high degree of resistance to corrosion, chemicals, and temperature extremes, the IP69K touchscreen monitor thrives where other displays falter, providing uninterrupted performance in challenging industrial environments. Whether used for process control, quality assurance, or data visualization, this cutting-edge device delivers unmatched durability and performance, ensuring smooth operation and peace of mind for operators and managers alike.

IP69K Touchscreen Monitor
Model Name	ITD19CMx1IPS1-69K
IP Rating	IP69K
LCD Panel
Screen Diagonal (Inch/cm)	19”
Aspect Ratio	5 : 4
Display Active Screen Size (mm)	376.32(H)×301.056(V)mm
Physical Resolution	1280×1024
Pixel Pitch	0.294×0.294
Response Time	3.6/1.4ms
Colors	16.7M
Brightness (cd/m2)	250nits (350nits, 500nits, 1000nits optional)
Contrast Ratio	1000:1
View Angels	85/85/80/80
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options	Resistive, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Default Waterproof Input / Output
HDMI Output	1 × HDMI input
Touch Port	1 × USB
Power Port	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90% Non-Condensing
24/7/365 Use	Supported
Power
Power Indicator	N/A
Power Input	DC 12V (DC9~36V input optional)
Power Consumption	16W
Order Information
19”IP69K Stainless Steel LCD Monitor with Resistive Touch	ITD19CMT1IPS1-69K
19”IP69K Stainless Steel LCD Monitor with PCAP Touch	ITD19CMT5IPS1-69K
19”IP69K Stainless Steel LCD Monitor with Tempered Glass No Touch	ITD19CMG1IPS1-69K
19”IP69K Stainless Steel LCD Monitor with Resistive Touch, 1000nits	ITD19CMT1HBIPS2-69K
19”IP69K Stainless Steel LCD Monitor with PCAP Touch. 1000nits	ITD19CMT5HBIPS2-69K
19”IP69K Stainless Steel LCD Monitor with Tempered Glass No Touch, 1000nits	ITD19CMG1HBIPS2-69K
