Products > Sunlight Readable LCD > High Bright Sunlight Readable LCD Monitor Flat Bezel  >  19W inch Flat Bezel High Bright Sunlight Readable LCD Monitor

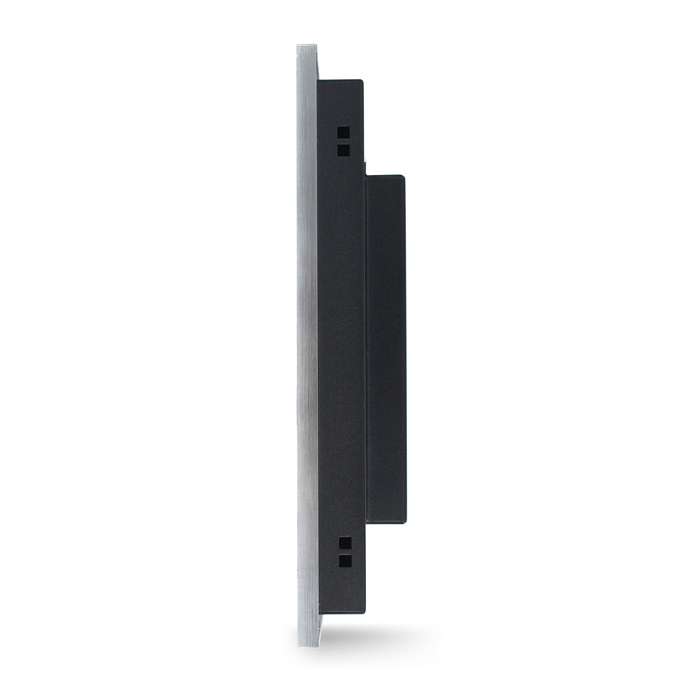

19W inch Flat Bezel High Bright Sunlight Readable LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, PCAP
-All steel construction designed for harsh and industrialenvironments
-True flat surface, easy to clean
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mountsunlight readableLCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments.A new design combined with PCAP or resistive touch makes true flat surface, easy to clean.Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. Panel Mount High brightnessLCD monitorsare ideal for system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marinefor indoor, semi-outdoor, outdoor applications.




High Brightness Flat Bezel Panel Mount LCD
Monitor

Model Name

ITD19PMG1HBX2W

IP Rating

IP65 Front Panel


LCD Panel



Screen Diagonal (Inch/cm)

19

Display Active Screen Size (cm)

408.32(H) 255.2(V)mm

Aspect Ratio

16:10

Physical Resolution

1440900

Maximum Resolution Supported

19201200

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel



Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

24W

Order Information



191000nits Panel Mount LCD Monitor with Resistive Touch

ITD19PMT1HBX2W

191000nits Panel Mount LCD Monitor with PCAP Touch

ITD19PMT5HBX2W

191000nits Panel Mount LCD Monitor with Tempered Glass

ITD19PMG1HBX2W

191500nits Panel Mount LCD Monitor with Resistive Touch

ITD19PMT1HBX1W

191500nits Panel Mount LCD Monitor with PCAP Touch

ITD19PMT5HBX1W

191500nits Panel Mount LCD Monitor with Tempered Glass

ITD19PMG1HBX1W
