Products > Industrial Touchscreen LCD > Chassis LCD Monitor  >  21.5 inch Chassis LCD Monitor

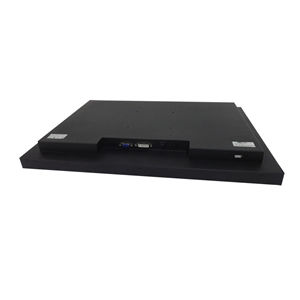

21.5 inch Chassis LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and chassisVESA-mount display
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial chassis LCD monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminalsand industrial machinery builder applications.ITD full-range selection is provided in screen sizes from 5.7¡±~85¡±.




Chassis LCD
Monitor

Model Name

ITD21CMN101

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch)

21.5¡±

Display Active Screen Size (cm)

476.64(H)¡Á268.11(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

250

Contrast Ratio

1000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours¡¯Lifetime


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

32.5W


Order Information



21.5¡±Chassis LCD Monitor with Resistive Touch

ITD21CMT101

21.5¡±Chassis LCD Monitor with IR Touch

ITD21CMT201

21.5¡±Chassis LCD Monitor with SAW Touch

ITD21CMT301

21.5¡±Chassis LCD Monitor with PCAP Touch

ITD21CMT501

21.5¡±Chassis LCD Monitor with Tempered Glass

ITD21CMG101
