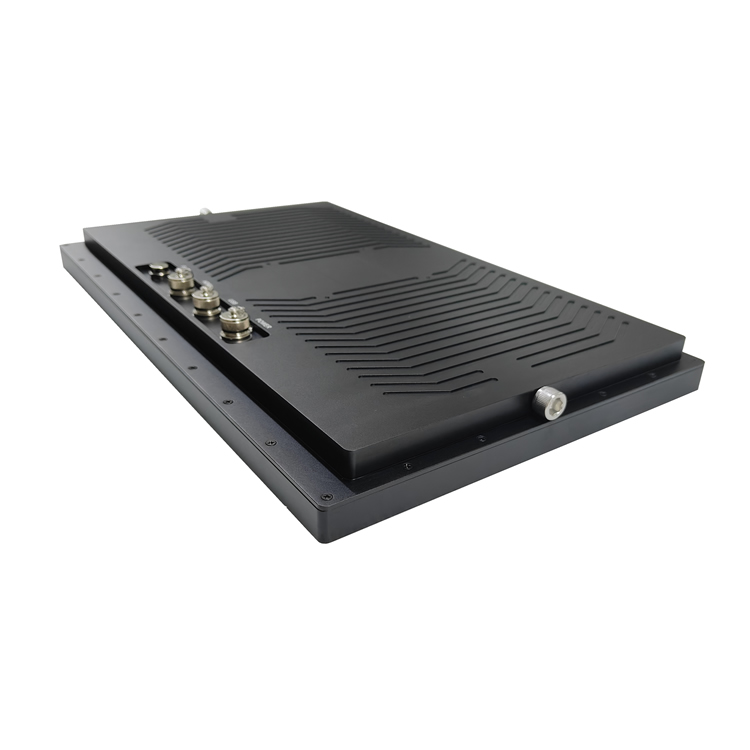

21.5 inch IP67 Rugged Sunlight Readable Touch Monitor for Fishfinder
BENEFITS
- 21.5" High-Brightness Display: Large, sunlight-readable screen with advanced brightness technology, providing clear and sharp visuals even under direct sunlight, ideal for outdoor fishing applications.
- Rugged Construction: Built to withstand the harsh marine environment, with shock resistance up to 20G, ensuring durability against rough seas, constant vibrations, and physical impacts.
- IP-Rated Waterproof Design: Fully waterproof aluminum alloy enclosure, protecting the monitor from water, rain, and humidity, ensuring reliable performance in any weather condition.
- Responsive Multi-Touch Interface: Capacitive touch technology that responds smoothly to touch inputs, even when operated with wet or gloved hands, for easy control and navigation on the water.
- Wide Viewing Angle: The monitor features wide viewing angles, allowing multiple users to view the screen clearly from different positions, making it suitable for group fishing activities.
- Versatile Connectivity Options: Equipped with multiple I/O ports for easy integration with fishfinders, sonar systems, GPS, and other marine electronics, enhancing its functionality on various vessels.
- Anti-Glare&Anti-UV Coating: The display includes an anti-glare &anti-UV coating, reducing reflections and enhancing readability in bright and reflective environments, essential for use on open water.
- Energy-Efficient Operation: Designed for low power consumption, optimizing energy use while ensuring long-lasting performance during extended fishing trips.
- Customizable Interface: Offers customizable display options and user-friendly interface settings, enabling users to tailor the monitor to their specific needs and preferences.
OVERVIEW
ITD's 21.5" rugged sunlight readable touch monitors designed specifically for marine environments, the fishfinder displays offer high-resolution, sunlight-readable screens with advanced touch functionality. These rugged, waterproof monitors provide anglers with crystal-clear imaging, allowing for precise underwater detection and enhanced fishing experiences. Equipped with customizable interfaces, wide viewing angles, and compatibility with leading sonar technologies, ITD's displays ensure reliability and performance even in challenging conditions. Whether for recreational fishing or professional use, ITD's fishfinder displays are engineered to meet the demands of every angler.


IP67 Rugged Sunlight Readable Touch Monitor

Model Name ITD21CMT5HBIPR1
IP Rating IP67

LCD Panel

Screen Diagonal (Inch/cm) 21.5¡±
Aspect Ratio 16 : 9
Display Active Screen Size (mm) 476.64(W)¡Á268.11(H) mm
Physical Resolution 1920¡Á1080
Pixel Pitch 0.24825¡Á0.24825
Response Time 17ms
Colors  16.7M
Brightness (cd/m2) 1500nits
Contrast Ratio 1000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Screen (Anti-Glare&Anti-UV, Optically Bonded)
Touch Drivers Plug and Play for Windows, Linux, Mac, Android, Raspberry Pi

Default M12 Waterproof Interfaces

HDMI Port 1 ¡Á HDMI input
Touch Port 1 ¡Á Micro USB
Power Port 1 ¡Á DC9~36V

Operation

Operating Temperature Range -20~70¡ãC
Humidity Range (RH) 10-90% Non-Condensing
24/7/365 Use Supported

Power

Power Indicator LED Light
Power Consumption 45W
Power Input DC9~36V input

Others

1.Readable with polarized sunglasses.
2.Fan-less aluminum alloy enclosure with heatsink, flat surface with easy-to-clean
3.10 points PCAP touch screen with anti-glare and anti-UV coating, touch on/off control
4.U-shaped Mount&Customer¡¯s LOGO Printing optional
