OVERVIEW
ITD industrial HMI touch panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminum enclosures and highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean. The Industrial HMI panel PCs come with industrial LCD flat screen sizes, PCAP or resistive touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.

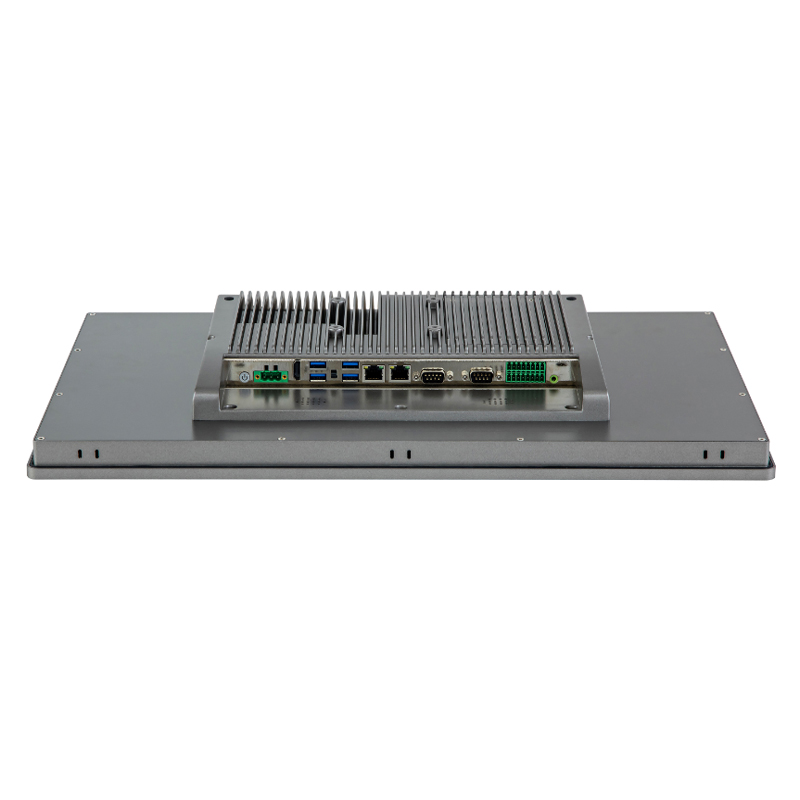

Industrial HMI Touch Panel PC
Model Name	ITD21PPCT5B-xxxx
IP Rating	IP65 Front Panel
PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7 (4th~12th Generation optional) Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412) 2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.) HDD/SSD: Default to 16G, Max. 128G Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD 1×HDMI Output; COM optional 1×VGA, 1×HDMI 1×VGA, 1×HDMI 2×USB, Max. 4×USB, 1×USB OTG (optional) 2×USB 2.0, 2×USB3.0, Max. 6 2×USB 2.0, 2×USB3.0, Max. 6 1×TF Card Slot(Supports 8~128G) 2×COM, Max. 6 2×COM, Max. 6 1×LAN 1×LAN, Dual LAN optional 1×LAN, Dual LAN optional 1×Audio Out 1×Realtek ALC662 , 1×Line-Out/MIC In 1×Realtek ALC662 , 1×Line-Out/MIC In PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux Windows 11(available for J4125/J6412) Windows 7/10, Linux Windows 11(available for 7th gen. or above)
LCD Panel
Screen Diagonal (Inch)	21.5”
Display Active Screen Size (cm)	476.64(H) ×248.25(V)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m2)	250nits
Contrast Ratio	1000:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options	Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers	Windows 7/8/10, Linux, Android, Mac
Operation
Operating Temperature Range	-20~60°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 9-36V with 3-pin terminal block
Power Consumption	45W
Order Information
21.5” Industrial HMI PCAP Touch Panel PC with J1900	ITD21PPCT5B-J1900
21.5” Industrial HMI Resistive Touch Panel PC with J1900	ITD21PPCT1B-J1900
21.5” Industrial HMI PCAP Touch Panel PC with i5-4200U	ITD21PPCT5B-i5-4200U
21.5” Industrial HMI Resistive Touch Panel PC with i5-4200U	ITD21PPCT1B- i5-4200U
21.5” Industrial HMI PCAP Touch Panel PC with i5-6360U	ITD21PPCT5B-i5-6360U
21.5” Industrial HMI Resistive Touch Panel PC with i5-6360U	ITD21PPCT1B-i5-6360U
21.5” Industrial HMI PCAP Touch Panel PC with i5-7200U	ITD21PPCT5B-i5-7200U
21.5” Industrial HMI Resistive Touch Panel PC with i5-7200U	ITD21PPCT1B-i5-7200U
21.5” Industrial HMI PCAP Touch Panel PC with i5-8250U	ITD21PPCT5B-i5-8250U
21.5” Industrial HMI Resistive Touch Panel PC with i5-8250U	ITD21PPCT1B-i5-8250U
21.5” Industrial HMI PCAP Touch Panel PC with i7-4500U	ITD21PPCT5B-i7-4500U
21.5” Industrial HMI Resistive Touch Panel PC with i7-4500U	ITD21PPCT1B-i7-4500U
21.5” Industrial HMI PCAP Touch Panel PC with i7-6500U	ITD21PPCT5B-i7-6500U
21.5” Industrial HMI Resistive Touch Panel PC with i7-6500U	ITD21PPCT1B-i7-6500U
21.5” Industrial HMI PCAP Touch Panel PC with i7-7500U	ITD21PPCT5B-i7-7500U
21.5” Industrial HMI Resistive Touch Panel PC with i7-7500U	ITD21PPCT1B-i7-7500U
21.5” Industrial HMI PCAP Touch Panel PC with i7-8550U	ITD21PPCT5B-i7-8550U
21.5” Industrial HMI Resistive Touch Panel PC with i7-8550U	ITD21PPCT1B-i7-8550U
