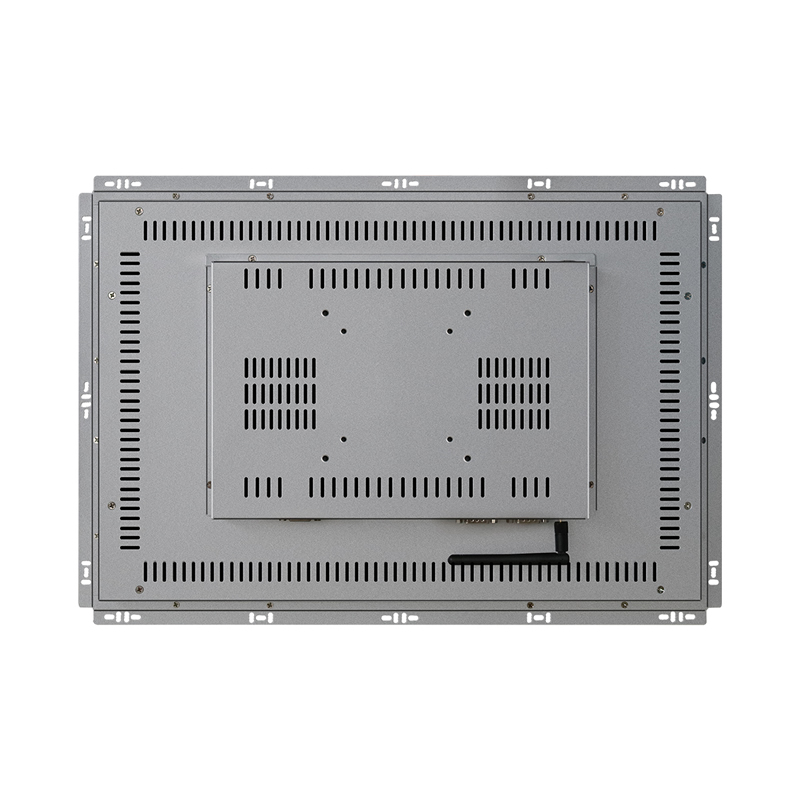

21.5 inch Open Frame High Bright Sunlight Readable Panel PC
BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install side brackets or VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial open frame sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD open frame panel PCs cater to those who seek to further customize the appearance of their application and come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.


Open Frame High Brightness Panel PC

Model Name

ITD21PPCG1HBF**

IP Rating

N/A


PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core?i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel?Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD:?Default to?16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD 		Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD
1¡ÁHDMI?Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412) 		Windows 7/10, Linux
Windows 11(available for 7th gen. or above)


LCD Panel



Screen Diagonal (Inch/cm)

21.5¡±

Display Active Screen Size (mm)

476.64(H)X268.11(V)

Aspect Ratio

16:9

Physical Resolution

1920X1080

Maximum Resolution Supported

1920X1080

Colors

16.7M

Brightness (cd/m2)

1000(1500 Optional)

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

60W


Order Information



21.5¡±1000nits Open Frame Panel PC with Resistive Touch, J1900

ITD21PPCT1HBFJ1

21.5¡±1000nits Open Frame Panel PC with PCAP Touch, J1900

ITD21PPCT5HBFJ1

21.5¡±1000nits Open Frame Panel PC with IR Touch, J1900

ITD21PPCT2HBFJ1

21.5¡±1000nits Open Frame Panel PC with Tempered Glass, J1900

ITD21PPCG1HBFJ1

21.5¡±1000nits Open Frame Panel PC with Resistive Touch, i5

ITD21PPCT1HBFI5

21.5¡±1000nits Open Frame Panel PC with PCAP Touch, i5

ITD21PPCT5HBFI5

21.5¡±1000nits Open Frame Panel PC with IR Touch, i5

ITD21PPCT2HBFJ1

21.5¡±1000nits Open Frame Panel PC with Tempered Glass, i5

ITD21PPCG1HBFI5
