24 inch Flat Bezel Panel Mount LCD Monitor

Products > Industrial Touchscreen LCD > Flat Bezel Panel Mount Panel PCs > 24 inch Flat Bezel Panel Mount LCD Monitor

BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like resistive, PCAP
- All steel construction designed for harsh and industrial environments
- True flat surface, easy to clean
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial panel mount LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. A new design combined with PCAP or resistive touch makes true flat surface, easy to clean. Industrial panel mount LCD monitors are ideal for system integrators, kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications.

Flat Bezel Panel Mount LCD Monitor
Model Name	ITD24PMN1X1
IP Rating	N/A
LCD Panel
Screen Diagonal (Inch)	24”
Display Active Screen Size (cm)	531.36(H)×298.89(V)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m2)	300nits
Contrast Ratio	1000:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options	Resistive, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi

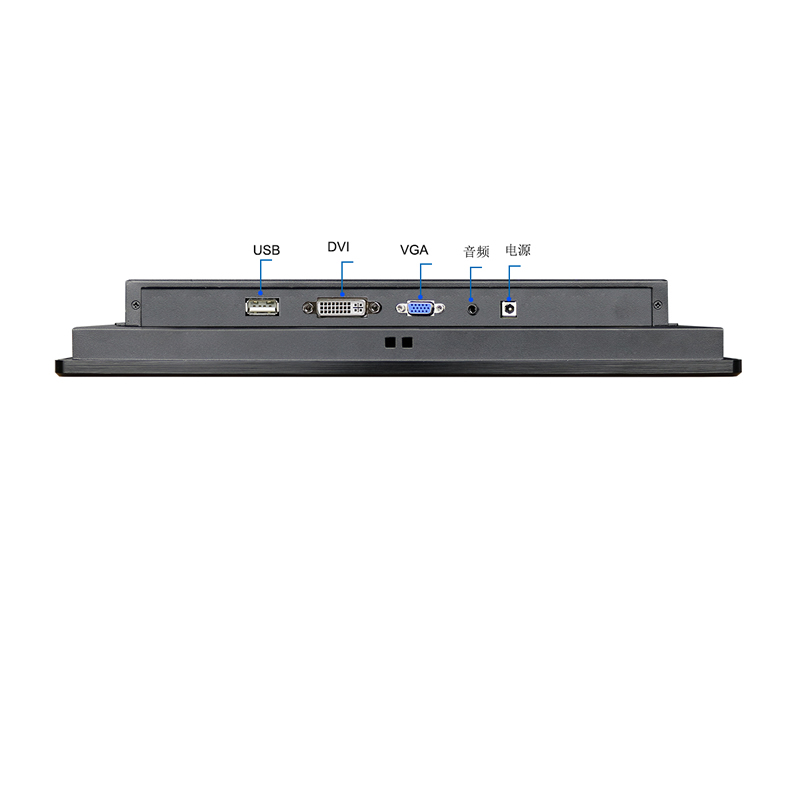

Input / Output
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V, DC 9-36V input optional
Power Consumption	28W
Order Information
24”Panel Mount LCD Monitor with Resistive Touch	ITD24PMT1X1
24”Panel Mount LCD Monitor with PCAP Touch	ITD24PMT5X1
24”Panel Mount LCD Monitor with Tempered Glass	ITD24PMG1X1
