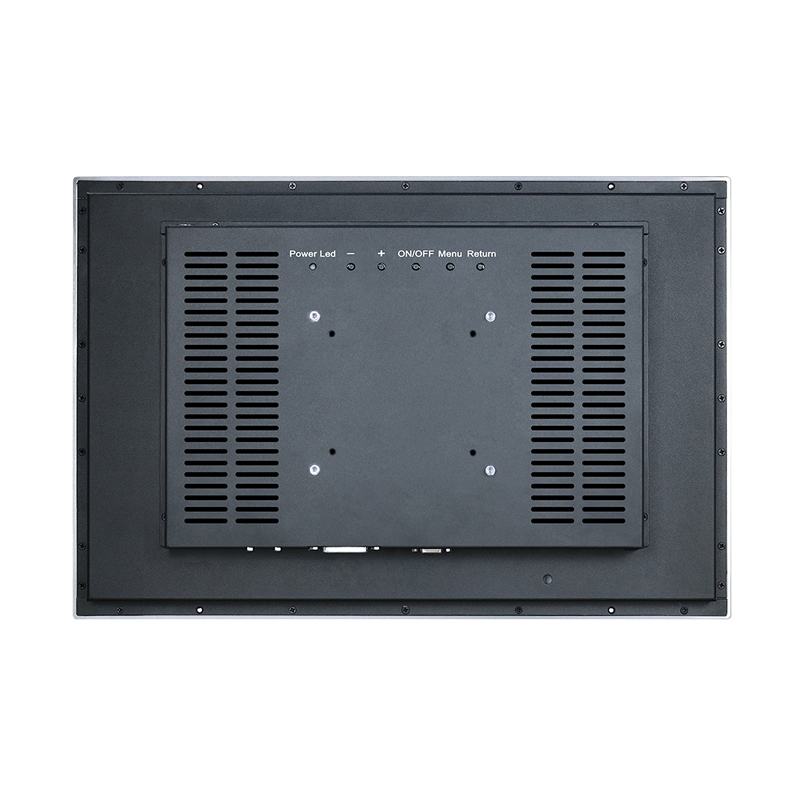

24 inch High Brightness Flat Bezel Panel Mount LCD Monitor

Products > Sunlight Readable LCD > High Bright Sunlight Readable LCD Monitor Flat Bezel > 24 inch High Brightness Flat Bezel Panel Mount LCD Monitor

BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like resistive, PCAP
- All steel construction designed for harsh and industrial environments
- True flat surface, easy to clean
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- High brightness from 1000nits to 1500nits optical bonding optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial panel mount sunlight readable LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. A new design combined with PCAP or resistive touch makes true flat surface, easy to clean. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. Panel Mount High brightness LCD monitors are ideal for system integrators, kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine for indoor, semi-outdoor, outdoor applications.

High Brightness Flat Bezel Panel Mount LCD Monitor
Model Name	ITD24PMG1HBX2
IP Rating	IP65 Front Panel
LCD Panel
Screen Diagonal (Inch/cm)	24”
Display Active Screen Size (cm)	531.36(H) ×298.89(V)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m2)	1000 cd/m2 (1500 cd/m2 optional)
Contrast Ratio	1000:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options	Resistive, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V (DC9-36V optional)
Power Consumption	30W
Order Information
24”1000nits Panel Mount LCD Monitor with PCAP Touch	ITD24PMT5HBX2
24”1000nits Panel Mount LCD Monitor with Tempered Glass	ITD24PMG1HBX2
24”1500nits Panel Mount LCD Monitor with PCAP Touch	ITD24PMT5HBX1
24”1500nits Panel Mount LCD Monitor with Tempered Glass	ITD24PMG1HBX1
