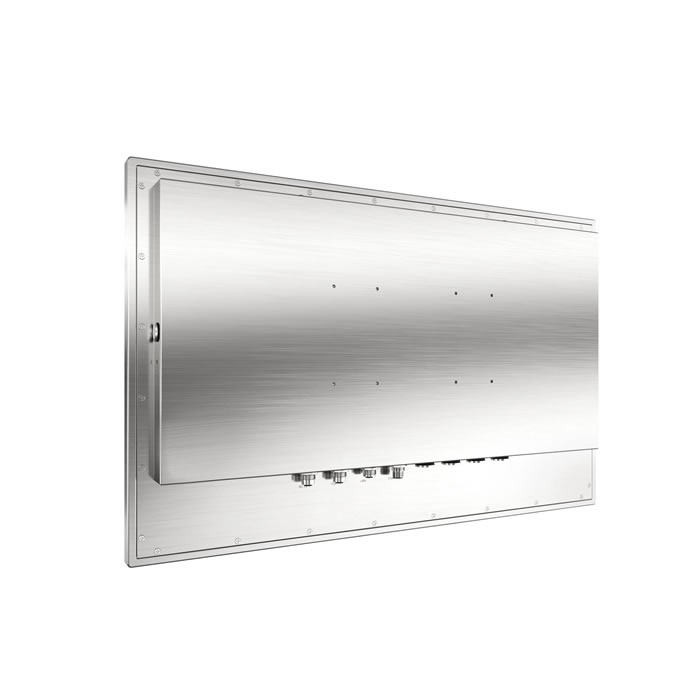

24 inch IP69K Rugged Stainless Steel Touchscreen Panel PC
BENEFITES
- Robust construction: Rugged panel PCs are typically built with tough materials, such as aluminum or stainless steel, that can withstand exposure to dust, water, and other harsh conditions.
- High brightness display: Rugged panel PCs often include high brightness displays that are visible even in bright sunlight, making them suitable for use in outdoor applications.
- Touchscreen interface: Many rugged panel PCs feature touchscreen interfaces, which can be more intuitive and easier to use in certain applications.
- Wide temperature range: Rugged panel PCs are designed to operate in a wide temperature range, typically from -20¡ãC to +60¡ãC, making them suitable for use in hot and cold environments.
- IP69K rating: Rugged panel PCs are typically rated IP69K, which means they are protected against water and dust ingress, and can withstand high-pressure, high-temperature washdowns.
- Vibration and shock resistance: Rugged panel PCs are typically designed to withstand high levels of vibration and shock, making them suitable for use in applications where equipment is subject to heavy use or impact.
- Fanless design: Rugged panel PCs may feature a fanless design, which reduces the risk of dust and debris getting into the system and extends the lifespan of the device.
- Mounting options: IP69K Stainless steel panel PCs may include a range of mounting options, such as VESA, panel mount, ARM mount, yoke mount to ensure flexible installation in a variety of environments
- Long lifespan: Stainless steel is known for its long lifespan, which means that equipment made from this material can last for many years, reducing the need for frequent replacements.
OVERVIEW
ITD¡¯s rugged IP69K stainless steel panel PCs typically feature a robust construction with tough materials, such as aluminum or stainless steel, and a high brightness display that is visible even in bright sunlight. They may also include a touchscreen interface, a wide temperature range, vibration and shock resistance, a fanless design, and a range of mounting options. These features make rugged IP69K panel PCs well-suited for use in a variety of industrial applications, such as food and beverage processing, transportation, outdoor signage, and heavy equipment monitoring. They are designed to provide reliable and efficient performance in even the harshest conditions.


IP69K Touchscreen Panel PC

Model Name ITD24PPCG1IP**-69K
IP Rating IP69K

PC Systems Options

ARM Android Based RK3288(RK3566/RK3399 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel? Celeron J1900/J4125/J6412 CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th Gen. optional)
Chipset: Rockchip Chipset: Intel? SOC Chipset: Intel? SOC
Memory: 2G, max. 4G Memory: 4GB(Max. 16GB) Memory: 4GB(Max. 32GB)
HDD/SSD: 8G, max. 128G HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2(available for J4125/J6412)
HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2
1¡ÁHDMI (optional) 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB 2.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡Ámini-SD slot 2¡ÁCOM(RS232/422/485) 2¡ÁCOM(RS232/422/485)
1¡ÁLAN 1¡ÁLAN 1¡ÁLAN
1¡ÁAudio Out 1¡ÁAudio Out, 1¡ÁMIC In 1¡ÁAudio Out, 1¡ÁMIC In
Expansion: COM port Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
Android, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported


Default Waterproof Circular(M12) Connectors:  2
¡ÁUSB 2.0, 1¡ÁCOM, 1¡ÁLAN, 1¡ÁDC


LCD Panel

Screen Diagonal (Inch/cm) 23.8¡±
Display Active Screen Size (mm) 527.04(H) ¡Á296.46(V)mm
Aspect Ratio 16:9
Physical Resolution 1920¡Á1080
Response Time 14ms
Colors 16.7M
Brightness (cd/m2) 250nits (1000nits, 1500nits optional)
Contrast Ratio 1000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel

Touch Options Resistive, PCAP, Infrared
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -20~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED by Power Switch
Power Input DC 12V(DC9-36V input, AC 100-240V input optional)
Power Consumption 25~40W

Order Information

23.8¡±Full IP69K Panel PC with Resistive Touch, Intel J1900 ITD24PPCT1IPSJ1-69K
23.8¡±Full IP69K Panel PC with PCAP Touch, Intel J1900 ITD24PPCT5IPSJ1-69K
23.8¡±Full IP69K Panel PC with Tempered Glass, Intel J1900 ITD24PPCG1IPSJ1-69K
23.8¡±Full IP69K Panel PC with Resistive Touch, Intel J4124 ITD24PPCT1IPSJ4-69K
23.8¡±Full IP69K Panel PC with PCAP Touch, Intel J4125 ITD24PPCT5IPSJ4-69K
23.8¡±Full IP69K Panel PC with Tempered Glass, Intel J4125 ITD24PPCG1IPSJ4-69K
23.8¡±Full IP69K Panel PC with Resistive Touch, Intel J6412 ITD24PPCT1IPSJ6-69K
23.8¡±Full IP69K Panel PC with PCAP Touch, Intel J6412 ITD24PPCT5IPSJ6-69K
23.8¡±Full IP69K Panel PC with Tempered Glass, Intel J6412 ITD24PPCG1IPSJ6-69K
23.8¡±Full IP69K Panel PC with Resistive Touch, Intel i3 ITD24PPCT1IPSI3-69K
23.8¡±Full IP69K Panel PC with PCAP Touch, Intel i3 ITD24PPCT5IPSI3-69K
23.8¡±Full IP69K Panel PC with Tempered Glass, Intel i3 ITD24PPCG1IPSI3-69K
23.8¡±Full IP69K Panel PC with Resistive Touch, Intel i5 ITD24PPCT1IPSI5-69K
23.8¡±Full IP69K Panel PC with PCAP Touch, Intel i5 ITD24PPCT5IPSI5-69K
23.8¡±Full IP69K Panel PC with Tempered Glass, Intel i5 ITD24PPCG1IPSI5-69K
