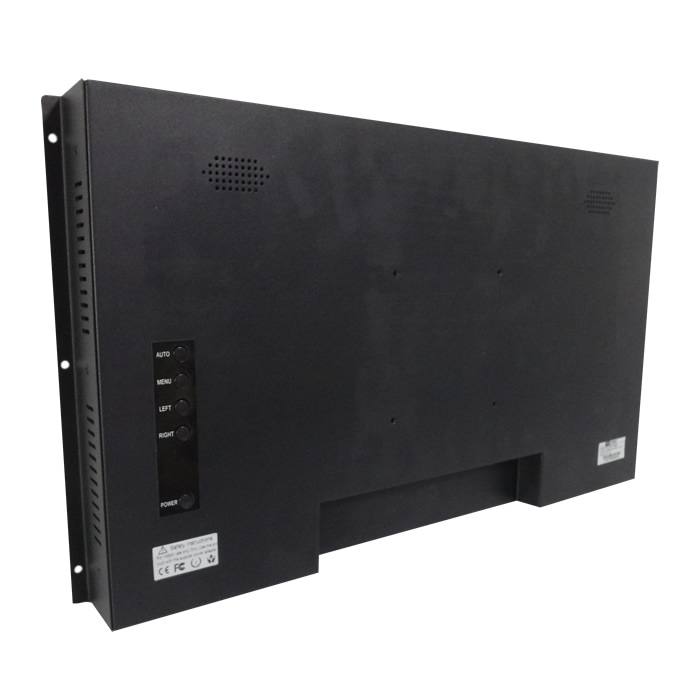

Open Frame High Brightness LCD Monitor

Model Name

ITD24OFN1HB02

IP Rating

N/A

LCD Panel

Screen Diagonal (Inch/cm)

24”

Display Active Screen Size (mm)

531.36(H) ×298.89(V)

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

1 × USB

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

AC100-220V

Power Consumption

60W

Order Information

24”1000nits Open Frame LCD Monitor with Resistive Touch

ITD24OFT1HB02

24”1000nits Open Frame LCD Monitor with IR Touch

ITD24OFT2HB02

24”1000nits Open Frame LCD Monitor with SAW Touch

ITD24OFT3HB02

24”1000nits Open Frame LCD Monitor with PCAP Touch

ITD24OFT5HB02

24”1000nits Open Frame LCD Monitor with Tempered Glass

ITD24OFG1HB02

24”1500nits Open Frame LCD Monitor with Resistive Touch

ITD24OFT1HB01

24”1500nits Open Frame LCD Monitor with IR Touch

ITD24OFT2HB01

24”1500nits Open Frame LCD Monitor with SAW Touch

ITD24OFT3HB01

24”1500nits Open Frame LCD Monitor with PCAP Touch

ITD24OFT5HB01

24”1500nits Open Frame LCD Monitor with Tempered Glass

ITD24OFG1HB01
