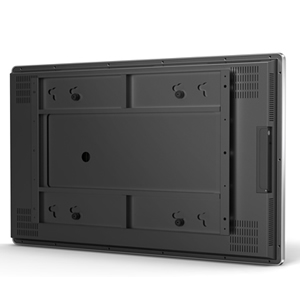

24 inch Wall-Mounted Digital Signage LCD Display

Products > Digital Signage > Wall Mounted Digital Posters > 24 inch Wall-Mounted Digital Signage LCD Display

BENEFITES
- Exceptional quality and commercial-grade reliability and performance
- Ultra-Slim, Energy-Efficient LED Backlight Technology
- All steel construction designed for harsh & public environments
- Timing, split screen, plug and play, playback supported
- Optional touchscreens like IR, PCAP, touch foil
- Tempered glass fitted on front for vandal proof
- Landscape and portrait flexibility
- Optional single media player, network media player integrated
- Pre-installed CMS management system for network version
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD wall mounted digital signage displays series is a truly dynamic medium that puts on a show, engages with impact and communicates and conveys all manner of media in unique, branded and tailored style across display screens that project in ways that conventional media messaging just can’t touch. Content is customized with text, graphics and video that shouts, schmoozes or just speaks spectacularly. ITD wall-mounted digital signage displays incorporate media playing with optional single SD card and USB port, ARM based player and x86 based player integrated, a sleek design and commercial functionality into an affordable digital signage solution. Featuring an elegant design with zero-bezel and ultra-slim profile, the ITD wall-mounted digital signage series is the ideal display solution for digital signage applications in retail stores, restaurants, medical offices, healthcare, corporate meeting areas, education, hotel and leisure environments..

Wall-Mounted Digital Signage LCD Display
Model Name		ITD24ADG1**
IP Rating		IP65 Front Panel Optional
Single Media Player Option
1 ×USB 2.0, 1×SD Card Slot, 1×HDMI Input(Optional) Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel NM10 Express		Chipset: Intel HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		24”
Display Active Screen Size (cm)		531.36(H)×298.89(V)
Aspect Ratio		16:9
Physical Resolution		1920×1080
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m2)		250
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000Hours' Lifetime
Touch Panel Available for Network Version
Touch Options		IR, PCAP, Touch Foil
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		0~50°C
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power /Speakers
Power Indicator		Green LED
Power Input		Internal Power Supply, AC 100V~240V
Power Consumption Speakers		61.25W 2×5W
Order Information
24”Wall Mounted Single Digital Signage		ITD24ADG1A1
24”Wall Mounted Android Network Digital Signage		ITD24ADG1BE1
24”Wall Mounted Windows(J1900) Network Digital Signage		ITD24ADG1BJ1
24”Wall Mounted Windows(Intel i3) Network Digital Signage		ITD24ADG1BC1
