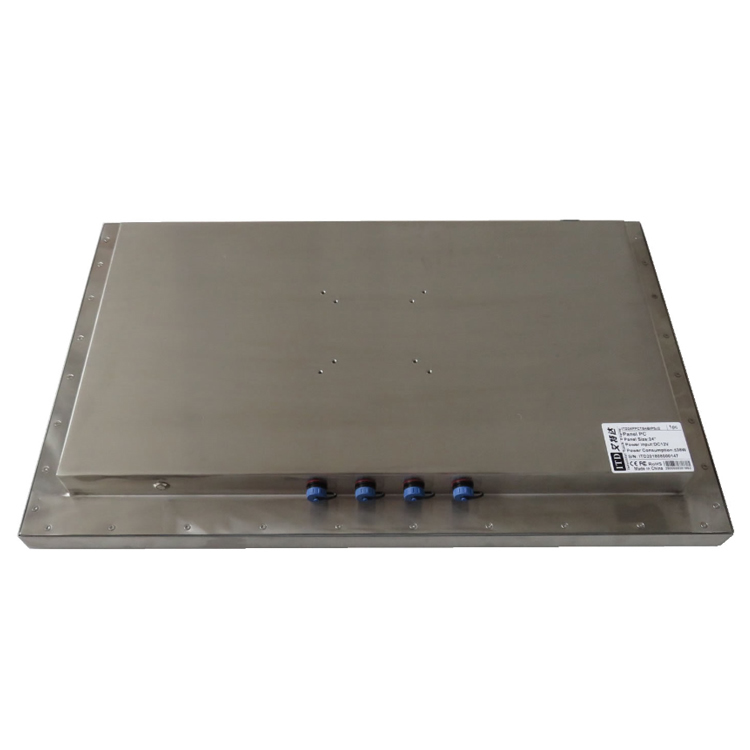

Products > Sunlight Readable LCD > Sunlight Readable Full IP65 IP66 Panel Pc  >  32 inch High Brightness Full IP66 Rugged Stainless Steel Panel PC

OVERVIEW
ITD industrial full IP66 sunlight readable touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP66 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD sunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.

High Brightness Full IP65/IP66 Panel PC
Model Name		ITD32PPCG1IPHB**
IP Rating		IP65/IP66(IP67 optional)
PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7 (4th~12th Generation optional) Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412) 2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.) HDD/SSD: Default to 16G, Max. 128G Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD 1×HDMI Output; COM optional 1×VGA, 1×HDMI 1×VGA, 1×HDMI 2×USB, Max. 4×USB, 1×USB OTG (optional) 2×USB 2.0, 2×USB3.0, Max. 6 2×USB 2.0, 2×USB3.0, Max. 6 1×TF Card Slot(Supports 8~128G) 2×COM, Max. 6 2×COM, Max. 6 1×LAN 1×LAN, Dual LAN optional 1×LAN, Dual LAN optional 1×Audio Out 1×Realtek ALC662 , 1×Line-Out/MIC In 1×Realtek ALC662 , 1×Line-Out/MIC In PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux Windows 11(available for J4125/J6412) Windows 7/10, Linux Windows 11(available for 7th gen. or above)
Default Waterproof Connectors:  2×USB 2.0, 1×LAN, 1×Power Input
LCD Panel
Screen Diagonal (Inch/cm)		32”
Display Active Screen Size (m)		698.4(H) ×392.85(V)
Aspect Ratio		16:9
Physical Resolution		1920×1080
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m2)		1000nits
Contrast Ratio		1200:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		PCAP, Infrared
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		0~50°C
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		AC110-240V (DC9-36V optional)
Power Consumption		100W
Order Information
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, Android		ITD32PPCT1IPHBSE2
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, Android		ITD32PPCT5IPHBSE2
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, Android		ITD32PPCG1IPHBSE2
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900		ITD32PPCT1IPHBSJ2
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900		ITD32PPCT5IPHBSJ2
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900		ITD32PPCG1IPHBSJ2
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3		ITD32PPCT1IPHBSI3
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3		ITD32PPCT5IPHBSI3
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3		ITD32PPCG1IPHBSI3
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i5		ITD32PPCT1IPHBSI5
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i5		ITD32PPCT5IPHBSI5
32”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i5		ITD32PPCG1IPHBSI5
32”1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, Android		ITD32PPCT1IPHBAE2
32”1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, Android		ITD32PPCT5IPHBAE2
32”1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, Android		ITD32PPCG1IPHBAE2
32”1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, J1900		ITD32PPCT1IPHBAJ2
32”1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, J1900		ITD32PPCT5IPHBAJ2
32”1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, J1900		ITD32PPCG1IPHBAJ2
32”1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i3		ITD32PPCT1IPHBAI3
32”1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i3		ITD32PPCT5IPHBAI3
32”1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i5		ITD32PPCT1IPHBAI5
32”1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i5		ITD32PPCT5IPHBAI5
