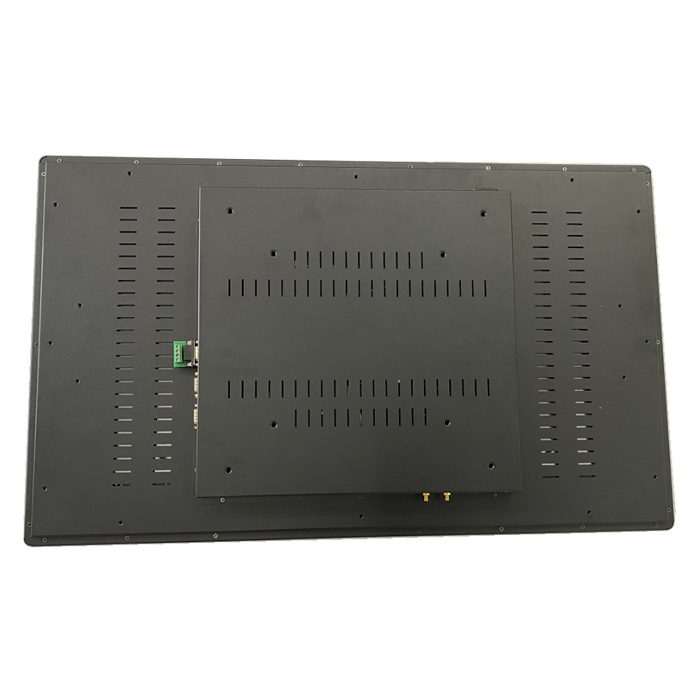

32 inch Open Frame Flush Mount PCAP Touch Panel PC
BENEFITES - Exceptional quality and highly engineered industrial panel computer - High Performance Processor, Graphics, Memory, and Power - All steel construction designed for harsh & industrial environments - Ten independent touch points (with Windows, Android, Linux operating systems) - Eliminates dust and debris build-up at the edge and corners of the display - Provides improved power efficiency and reduced consumption - Responds to a light touch to activate response - Ruggedized levels of NEMA 4, IP65 ratings for front panel - Easy flush rear mounting with optional side mounting brackets - CE, FCC, RoHS Compliance
OVERVIEW ITD industrial open frame touchscreen panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. ITD open frame touchscreen panel PCs cater to those who seek to further customize the appearance of their application and come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
Open Frame Flush Mount PCAP Touch Panel PC
Model Name
ITD32PPCT5Y**
IP Rating
IP65 Front
PC Systems Options
ARM Android Based RK3288(RK3399 optional)
X86 Based
X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz
CPU: Intel Celeron J1900/J4125/6412
CPU: Intel Core i3/i5/i7 4th~11th Generation
Chipset: Rockchip
Chipset: Intel Bay Trail SOC
Chipset: Intel SoC
Graphic: Intel HD Graphics (By CPU)
Chipset: Intel HD Graphics (By CPU)
Memory: 2G Max. 8GB
Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1
Memory: 4GB, Max. 32GB; DDR4 SODIMM x2
HDD/SSD: 8G Max. 64GB
Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD
Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD
1¡ÁHDMI Output
1¡ÁVGA, 1¡ÁHDMI
1¡ÁVGA, 1¡ÁHDMI
1¡ÁUSB 2.0
2¡ÁUSB 2.0, 2¡ÁUSB3.0
2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡ÁTF Slot
2¡ÁCOM(RS232/422/485)
1¡ÁCOM(RS232/422/485)
1¡ÁLAN
1¡ÁLAN (Dual LAN optional)
1¡ÁLAN (Dual LAN optional)
1¡ÁAudio Output
1¡ÁAudio Out, 1¡ÁMIC In
1¡ÁAudio Out, 1¡ÁMIC In
1¡ÁCOM
Expansion: USB, COM, Mini-PCIe, etc.
Expansion: USB, COM, Mini-PCIe, etc.
OS Support: Android 7.1/8/9/10/11
OS Support: Windows 7/10/11, Linux
OS Support: Windows 7/10/11, Linux
LCD Panel
Screen Diagonal (Inch/cm)
32¡±
Display Active Screen Size (mm)
698.40(H) ¡Á392.85(V)mm
Aspect Ratio
16:9
Physical Resolution
1920¡Á1080 (3840¡Á2160 optional)
Maximum Resolution Supported
1920¡Á1080
Colors
16.7M
Brightness (cd/m2)
400 cd/m2 (1000 cd/m2, 1500cd/m2 optional)
Contrast Ratio
1200:1
View Angels
89/89/89/89
Backlight/Backlight Lifetime
LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options
Projected Capacitive Touch Screen
Touch Drivers
Plug and Play
Operation
Operating Temperature Range
0~50¡ãC (-10~60¡ãC optional)
Humidity Range (RH)
10-90%
24/7/365 Use
Supported
Power
Power Indicator
Green LED
Power Input
AC100-240V input
Power Consumption
60W
Order Information
32¡±Open Frame Flush Mount Panel PC with PCAP Touch, J1900
ITD32PPCT5YJ1
32¡±Open Frame Flush Mount Panel PC with Tempered Glass, J1900
ITD32PPCG1YJ1
32¡±Open Frame Flush Mount Panel PC with PCAP Touch, i3
ITD32PPCT5YI3
32¡±Open Frame Flush Mount Panel PC with Tempered Glass, i3
ITD32PPCT5YI3
32¡±Open Frame Flush Mount Panel PC with PCAP Touch, i5
ITD32PPCT5YI5
32¡±Open Frame Flush Mount Panel PC with Tempered Glass, i5
ITD32PPCT5YI5
32¡±Open Frame Flush Mount Panel PC with PCAP Touch, i7
ITD32PPCT5YI7
32¡±Open Frame Flush Mount Panel PC with Tempered Glass, i7
