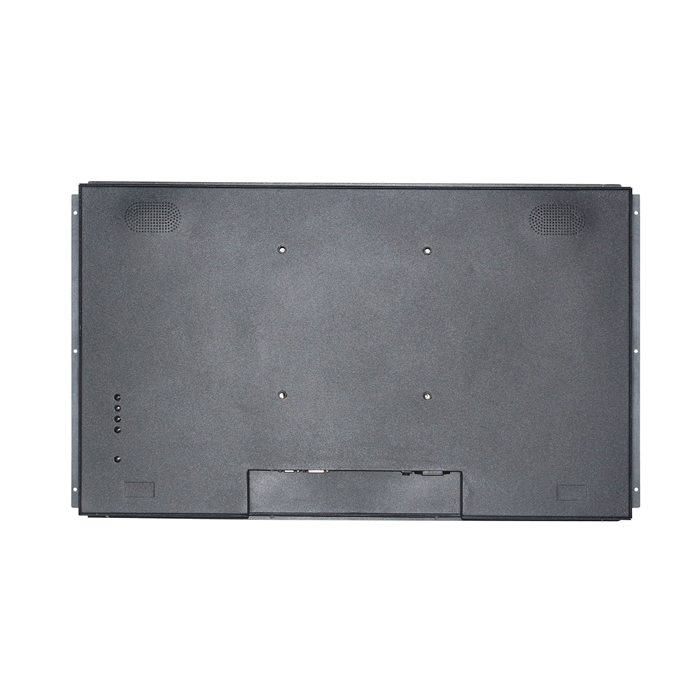

Open Frame High Brightness LCD Monitor

Model Name

ITD32OFN1HB02

IP Rating

N/A

LCD Panel

Screen Diagonal (Inch/cm)

32”

Display Active Screen Size (mm)

698.4(H) ×392.9(V)

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

3000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

1 × USB

Operation

Operating Temperature Range

0~50°C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

AC100-240V

Power Consumption

100W

Order Information

32”1000nits Open Frame LCD Monitor with Resistive Touch

ITD32OFT1HB02

32”1000nits Open Frame LCD Monitor with IR Touch

ITD32OFT2HB02

32”1000nits Open Frame LCD Monitor with SAW Touch

ITD32OFT3HB02

32”1000nits Open Frame LCD Monitor with PCAP Touch

ITD32OFT5HB02

32”1000nits Open Frame LCD Monitor with Tempered Glass

ITD32OFG1HB02

32”1500nits Open Frame LCD Monitor with Resistive Touch

ITD32OFT1HB01

32”1500nits Open Frame LCD Monitor with IR Touch

ITD32OFT2HB01

32”1500nits Open Frame LCD Monitor with SAW Touch

ITD32OFT3HB01

32”1500nits Open Frame LCD Monitor with PCAP Touch

ITD32OFT5HB01

32”1500nits Open Frame LCD Monitor with Tempered Glass

ITD32OFG1HB01
