34 inch Shelf Edge Ultra Wide Bar LCD Display

Products > Digital Signage > Stretched Bar LCD Monitors > 34 inch Shelf Edge Ultra Wide Bar LCD Display

BENEFITES
- Exceptional quality and commercial-grade reliability and performance

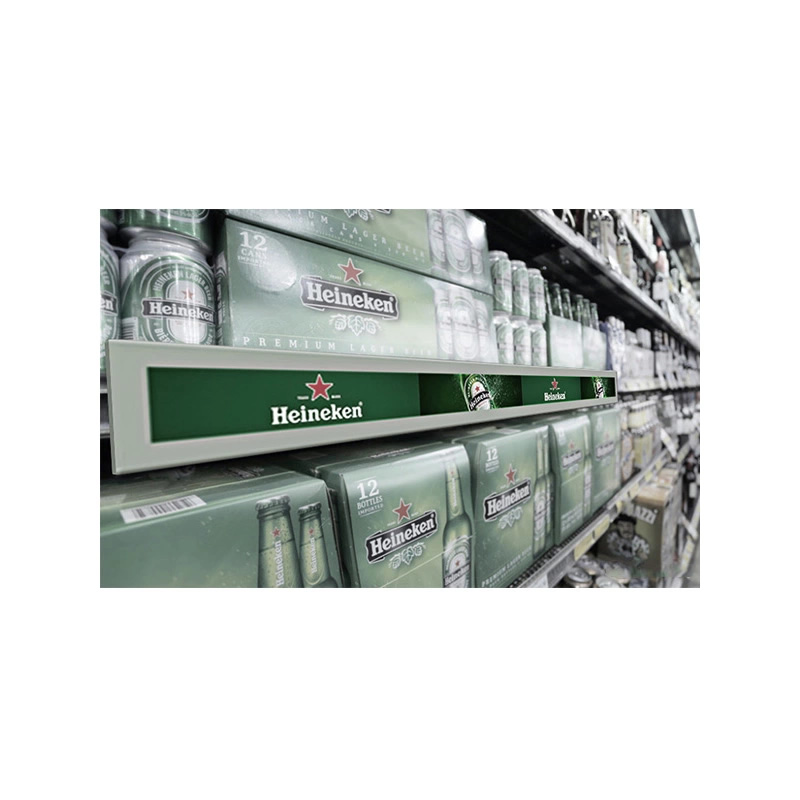

- Ultra wide with height at around 70mm perfect for retail shelf edge
- All steel construction designed for harsh & public environments
- Optional touchscreen like custom projected capacitive touch panel
- Superior viewing angles, contrast ratio and brightness
- Optional single media player, network media player integrated
- Portrait and landscape display flexibility
- Unique design accounts for heat ventilation
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD stretched bar-type LCD displays with ultra-wide aspect ratio is perfect for catching people’s attention that’s a perfect alternative of traditional LED displays, Take solace in ITD’s Bar LCD Monitor when integrating it into a display as it will always captivate audiences and work to provide as an informative display for any application. The stretched LCD display is a powerful tool for advertising or as an information display that can be with optional single SD card and USB port, ARM based player and single monitor with VGA, DVI, HDMI inputs integrated. ITD’s line of ultra wide shelf-level digital media LCD displays provides a significant opportunity for point of purchase conversion by engaging with the consumer via animated content. ITD has a range of shelf edge screens specifically developed for the retail shelf to help customer to create different brand.

Shelf Edge Ultra Wide Bar LCD Display
Model Name		ITD34SDN1**
IP Rating		Optional
Configuration Options
Single LCD Monitor	Single Media Player		ARM Android Based RK3188
1×VGA Input	Chipset: MSTAR		CPU: Quad-Core Cortex-A35 1.4GHz
1×DVI Input	Video Formats Supported: MP4、AVI、DAT、MPG、RM、RMVB、AVC、FLV		Android 6.0
1×HDMI Input			Memory: 1G/2G
1×DC 24V Input	Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE File Formats Supported: FAT, FAT32, NTFS		Storage: 8G
			1×WIFI IEEE802.11B/g/n
	Picture Formats Supported: JPEG, BMP, GIF, PNG 1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot		2×USB 2.0
			1×mini-SD slot optional

	1×Audio Out
	Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		34”
Display Active Screen Size (cm)		885(H)×56V)
Aspect Ratio		TBA
Physical Resolution		1920×228
Maximum Resolution Supported		1080P
Colors		16.7M
Brightness (cd/m2)		500 (1000 Optional)
Contrast Ratio		4000:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options Tempered Glass		PCAP (Customized) Optional
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power /Speakers
Power Indicator		Green LED
Power Input		External Power Supply, DC 12V
Power Consumption Speakers		38W Optional
Mechanical Dimension
Outline Dimension(mm)		906×80

Order Information
34”Stretched LCD Monitor		ITD34SDN101
34”Stretched LCD with Android Media Player		ITD34SDN1E1
34”Stretched LCD Monitor 1000nits		ITD34SDN1HB01
34”Stretched LCD with Android Media Player 1000nits		ITD34SDN1HBE1
